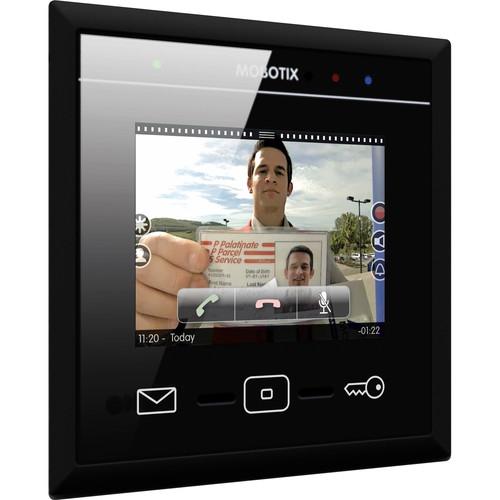

Product description The black MX-DISPLAY3-EXT-b 3.5" MxDisplay+ Outdoor Display from MOBOTIX is an IP65-rated weather-resistant IP intercom with a touchscreen display for use with MOBOTIX door stations. Built-in Wi-Fi and RFID functionalities make this unit easily configurable and allows for quick access to settings. Multiple MxDisplay+ monitors can be wirelessly connected, but each requires a PoE connection for power. A built-in microphone and speaker allow you to communicate with and grant access to visitors remotely. In the Box MOBOTIX MX-DISPLAY3-EXT-b MxDisplay+ Outdoor Display (Black) Seal Red RFID Admin Card Screwdriver Allen Wrench Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX MX-DISPLAY3-EXT-b MxDisplay Outdoor Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX MxDisplay+ Specs | Interfaces | Ethernet (single-wire terminal for installation cable AWG20 to 24),Wi-Fi, RFID Bluetooth V3.0 HS (can be used with future software update) | | Ethernet | PoE (IEEE 802.3af, Class 2) | | Wi-Fi | IEEE 802.11b/g/n, 2.4 or 5 GHz
Client or access point
WPA2 PSK encryption | | RFID Protocol | Mifare DESFire EV1 | | Outputs | 1 x Potential-free relay output
Maximum 48 VAC/VDC
Maximum 1 A
Maximum 60 W
2 x MxBus connections (2 x 2 terminals) | | Power Supply | PoE or 12-48 VDC with MxBus | | Power Consumption | PoE or 48 VDC, 3.5 W (typical) | | Display Size | 3.5" (8.9 cm) | | Display Resolution | 320 x 240 pixels (CIF) | | Compatibility | MOBOTIX cameras and door stations with software 4.4.0.31 and higher (all 14/24 models, not for M12)
Supported Number of Cameras per Unit: 16 | | User Interface | Touchscreen and three non-mechanical function keys | | Audio | Built-in microphone and speaker
16-bit/16 kHz
Full-duplex with automatic volume adjustment, equalizer, and echo and noise suppression | | IP Rating | IP65 (DIN EN 60529) | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Dimensions | 3.9 x 3.9 x 1.45" (99 x 99 x 37 mm) | | Weight | 9.52 oz (270 g) |
