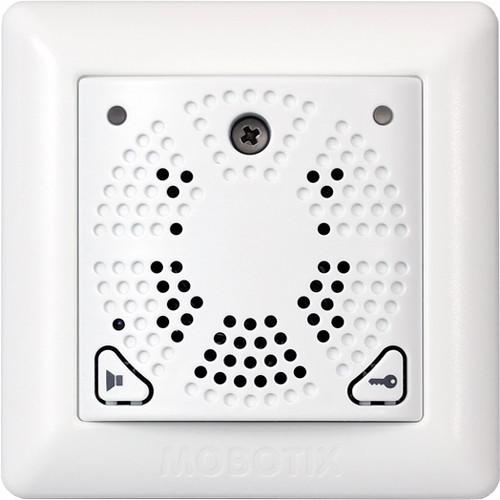

User Manual for MOBOTIX MX-DoorMaster Door Opener Click to enlarge the picture
Contents of the user manual for the MOBOTIX MX-DoorMaster Door Opener
- Product category: Indoor Stations MOBOTIX
- Brand: MOBOTIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOBOTIX Indoor Stations
|
User manual for the MOBOTIX MX-DoorMaster Door Opener contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOBOTIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOBOTIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOBOTIX product will considerably shorten its lifespan!
|
Product description Control access to the door attached to an IP video door station with this MX-DoorMaster Door Opener from MOBOTIX. The DoorMaster features a speaker, LED indicator lights, a doorbell button (on/off), and a door opener button. This door opener is designed for indoor, on-wall installations and features a rechargeable backup battery for bell features and door opener if power is lost. The opener uses an MxBus connection to connect and communicate to other compatible devices seamlessly, such as a door sensor or door lock sensor. In the Box MOBOTIX MX-DoorMaster Door Opener (On-Wall Mounting) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX MX-DoorMaster Door Opener in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX MX-DOOR2-INT-ON-PW Specs | Compatibility | MOBOTIX IP Video Door Station T25 | | Functions | Security door opener with internal access code memory | | Interfaces | MxBus, up to 164' (50 m) away from door station (available separately) | | User Interfaces | 2 x status LEDs, 2 x function buttons, built-in speaker | | Inputs | 2 x galvanically separated inputs with shared ground connection (AC/DC, self-powered, 48 V) | | Outputs | 1 x Isolated relay output (AC/DC, 24 V/1 A)
1 x Connector for standard door opener (6-12 VAC)
1 x Output for MOBOTIX anti-theft protection (12 VDC) | | Power Supply | MxBus | | Power Consumption | 1 W (typical) | | Output Power | 10 W maximum | | Switch | Time: 5 sec | | Wire | Thickness: Cable cross-section 0.14 to 2.5 mm2), diameter 0.02-0.063" (0.4-1.6 mm) | | Operating Temperature | 23 to 104°F (-5 to 40°C) (DIN EN 50155) | | IP Rating | IP20 (DIN EN 60529) | | Dimensions | 3.15 x 3.15 x 1.6" (80 x 80 x 41.5 mm) | | | | Box Dimensions (LxWxH) | 0.75 x 0.3 x 0.25" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
