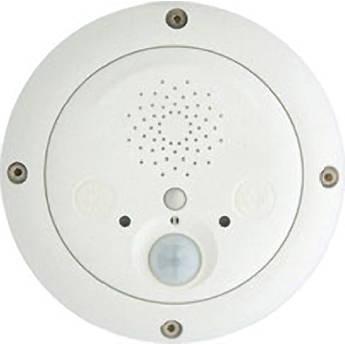

User Manual for MOBOTIX MX-EXTIO ExtIO Extension Module Click to enlarge the picture
Contents of the user manual for the MOBOTIX MX-EXTIO ExtIO Extension Module
- Product category: Interface Modules MOBOTIX
- Brand: MOBOTIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOBOTIX Interface Modules
|
User manual for the MOBOTIX MX-EXTIO ExtIO Extension Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOBOTIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOBOTIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOBOTIX product will considerably shorten its lifespan!
|
Product description The MOBOTIX MX-EXTIO ExtIO Extension Module can be connected to a camera either directly via USB or through a network and extends the MOBOTIX camera to a high-performance audio unit with microphone and speaker, infrared motion detector, temperature sensor and additional switch in-/outputs. Door and gate intercom systems are easy to implement using the 2 illuminated buttons. The practical and functional ExtIO module can be easily combined with all MOBOTIX cameras (except M1, M10, D10 and V10 cameras) and enables implementing door and gate intercom systems cost efficiently. - PIR sensor for motion detection and temperature sensor
- Integrated switch functions
- 2 signal inputs, 2 signal outputs, and 2 illuminated buttons
In the Box MOBOTIX MX-EXTIO ExtIO Extension Module Cable Grommets Mounting Hardware Instruction manual 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX MX-EXTIO ExtIO Extension Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX MX-EXTIO Specs | Input | Contacts: 2 signal inputs (galvanically separated)
Safety extra-low voltage, SELV (AC/DC)
Switching voltage of ExtIO provided (also external) | | Output | Contacts: 2 signal outputs (potential-free)
Safety extra-low voltage, SELV (AC/DC), up to 100 mA | | Interfaces | USB, Ethernet 10/100 Mbps | | Audio | Microphone and speaker, integrated amplifier and equalizer, line-in/line-out | | Sensors | Passive IR motion detector (PIR)
Temperature sensor for environmental temperature
Illumination sensor
2 illuminated buttons | | Status Display | 2 status LEDs | | Certifications | EMC (EN55022, EN55024, EN61000-6-2, FCC part15B, AS/NZS3548) | | Operating Conditions | IP65 (DIN EN 60529) | | Operating Temperature | -22 to 140°F (-30 to 60°C) (DIN EN 50125) | | Power Supply | USB, Power over Ethernet (IEEE 802.3af, Class 2) | | Power Input | Type 1 W | | Housing | High-resistance composites (PBT) | | Dimensions (Ø x H) | 6.3 x 1.77" (16 x 4.5 cm) | | Weight | 15.17 oz (430 g) | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 12.0 x 9.7 x 6.4" |
