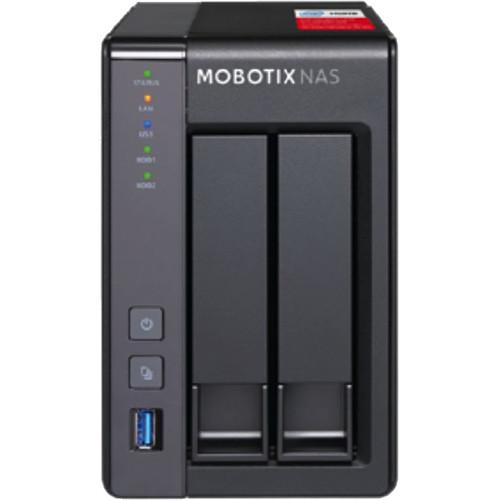

User Manual for MOBOTIX Mx-S-NAS2A-8 2-Bay NAS Enclosure Click to enlarge the picture
Contents of the user manual for the MOBOTIX Mx-S-NAS2A-8 2-Bay NAS Enclosure
- Product category: NAS Enclosures MOBOTIX
- Brand: MOBOTIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOBOTIX NAS Enclosures
|
User manual for the MOBOTIX Mx-S-NAS2A-8 2-Bay NAS Enclosure contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOBOTIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOBOTIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOBOTIX product will considerably shorten its lifespan!
|
Product description The Mx-S-NAS2A-8 2-Bay NAS Enclosure from MOBOTIX allows for the network recording of ONVIF-S cameras and decentralized MOBOTIX cameras. This efficient solution, complete with secure data storage from a single source, allows decentralized and centralized video components to be combined. The advantages of intelligent MOBOTIX IoT cameras, such as MxAnalytics or MxActivitySensor, are retained, while each MxMC workstation can now also be supplemented with the special functions of a mechanical, high-speed PTZ camera.
The Mx-S-NAS2A is powered by a 2.0 GHz Intel Celeron Quad-Core processor, 8GB of DDR3L RAM, and 512MB of flash memory. It has two Gigiabit Ethernet ports that support port trunking, two USB 3.0 Type-A ports, two USB 2.0 Type-A ports, one HDMI port, and two 2.5"/3.5" hot-swappable SATA III drive bays that can be configured as RAID 0, RAID 1, JBOD, or single. Up to eight ONVIF-S channels are supported and the number of MOBOTIX IoT channels are only limited by bandwidth, resolution, the length of recorded clips, etc.
The MOBOTIX Mx-S-NAS2A is compatible with Windows 10, 8, and 7, macOS 10.6 and later, Linux, and UNIX. A 4.9' power cable is included and protection is provided by a limited 2-year warranty. In the Box MOBOTIX Mx-S-NAS2A-8 2-Bay NAS Enclosure Power Cable (4.9' / 1.5m) Limited 2-Year Warranty
Includes Free - 2 x WD - 2TB Purple 5400 rpm SATA III 3.5" Internal Surveillance HDD Retail Kit tryqdraqeex
Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX Mx-S-NAS2A-8 2-Bay NAS Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX MX-S-NAS2A-8 Specs | | | Number of Bays | 2 x 2.5"/3.5" | | Media Card Slots | None | | Maximum Filled Capacity | 24 TB | | Connections | 1 x HDMI Type-A
2 x USB Type-A (USB 3.1 Gen 1 (5 Gb/s))
2 x USB Type-A (USB 2.0 (480 Mb/s))
2 x RJ45 (Gigabit Ethernet) | | Compatible Drive Interface | SATA II, SATA III | | Form Factor | Desktop | | RAID Modes | RAID 0, 1, JBOD, Single | | Hot-Swap Support | Yes | | Wake on LAN | Yes | | | | Total Raw Capacity | None | | Type | None | | Flash Memory | 512 MB | | | | Processor | Intel Celeron Quad-Core | | Clock Speed | Base: 2.0GHz / Maximum Boost: 2.4 GHz | | Total Installed Memory | 8 GB DDR3L | | User-Replaceable Memory | 2 x 4 GB | | | | Supported Protocols | AFP
CIFS/SMB
FTP
FTPS
HTTP
HTTPS
NFS
SFTP
SMSC
SMTP
SNMP
SSH
TFTP
Telnet
iSCSI | | Max Concurrent Connections | 1500 | | Max Folders | 512 | | Max Groups | 512 | | Max User Accounts | 4096 | | | | OS Compatibility | Windows 10
Windows 8
Windows 7
macOS 10.6 or Later
Linux
UNIX | | | | Power Consumption | 18.09 W (Typical)
10.56 W (Standby)
0.57 W (Idle) | | Power Source | AC Adapter | | PSU Wattage | 1 x 60 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 95% | | Certifications | CE, FCC, RCM, as per Manufacturer | | | | Cooling | 1 x Fan | | Built-In Speakers | None | | Audible Alarm | No | | IR Sensor | None | | Status Monitoring | LED Indicator | | Dimensions | 6.6 x 4.0 x 8.9" / 16.8 x 10.2 x 22.6 cm | | Weight | 2.9 lb / 1.3 kg | | | | Package Weight | 5.21 lb | | Box Dimensions (LxWxH) | 10.9 x 9.3 x 7.8" |
