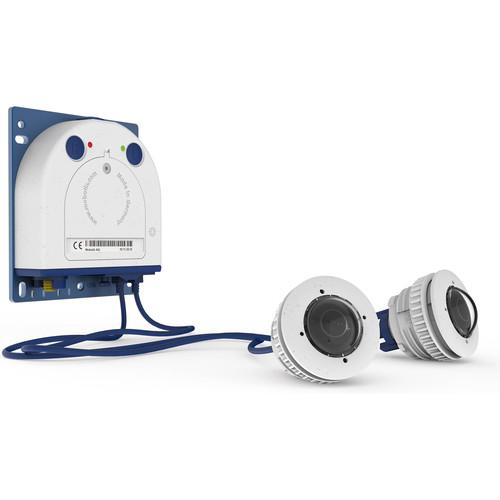

User Manual for MOBOTIX MX-S16B-S3 S16B DualFlex 6MP Outdoor Network Camera with B016 Day and Night Sensor Modules Click to enlarge the picture
Contents of the user manual for the MOBOTIX MX-S16B-S3 S16B DualFlex 6MP Outdoor
- Product category: Wired IP Cameras MOBOTIX
- Brand: MOBOTIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOBOTIX Wired IP Cameras
|
User manual for the MOBOTIX MX-S16B-S3 S16B DualFlex 6MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOBOTIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOBOTIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOBOTIX product will considerably shorten its lifespan!
|
Product description The Latest Surveillance Offerings from MOBOTIX Read More The MX-S16B-S3 S16B DualFlex 6MP Outdoor Network Camera with B016 Day and Night Sensor Modules comes with the S16B DualFlex camera body, a B016 day sensor module, a B016 night sensor module, and all the accessories you need for outdoor surveillance. The camera is IP66 rated for outdoor use, and IK07 rated for impact protection. - S16B DualFlex 6MP Outdoor Network Camera Body (No Lens) The S16B DualFlex 6MP Outdoor Network Camera Body from MOBOTIX is a dual-lens camera that supports two 6MP sensor modules (available separately). It comes with a 4GB microSD card installed to store captured video. This camera features two-way audio communication. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profile S, making it compatible with a wide range of surveillance devices. Video management for this device is via the MxManagementCenter VMS for Windows & Mac, and the MOBOTIX app for iOS. The camera is IP66 rated for outdoor use, and IK07 rated for impact protection. - Modular design enables user to change sensors and lenses
- Camera and data security includes user and group management, SSL connections, IP-based access control, IEEE 802.1x network access control, intrusion detection, and digital image signature
- H.264, MxPEG, and MJPEG video compressions
- USB interface to connect to external USB device
- Genetec protocol integration
- Programming interface (HTTP-API)
- Programmable exposure zones
- Snapshot recording (pre/post-alarm images)
- Continuous recording with audio
- Event recording with audio
- Bidirectional audio in browser
- VoIP telephony (audio, alert)
- Customized voice messages
- Temperature sensors and shock detector
- Playback and QuadView via web browser
- Time and event control/flexible event logic
- Event video and image transfer via FTP and email
- Weekly schedules for recordings and actions
- Master/slave communication
- Remote alarm notification
- MxMessageSystem for sending and receiving MxMessages
- Video analysis includes video motion detector and MxActivitySensor
- MxManagementCenter VMS for Windows & Mac
- MOBOTIX app for iOS 6.0 or higher
- Mean time between failures greater than 80,000 hours
- 6MP Day Sensor Module with B016 Lens (White) The white 6MP Day Sensor Module with B016 from MOBOTIX features an integrated lens, image sensor, and microphone. This sensor module comes preassembled for ceiling or wall mounting and has a quick connector for easy connection to MOBOTIX DualFlex or AllroundDual camera modules. It is IP66-rated for protection against dust and water, making it suitable for outdoor use.
- B016 lens with f/2.0 aperture
- 6MP Night Sensor Module with B016 Lens (White) The white 6MP Night Sensor Module with B016 from MOBOTIX features an integrated lens, image sensor, and microphone. This sensor module comes preassembled for ceiling or wall mounting and has a quick connector for easy connection to MOBOTIX DualFlex or AllroundDual camera modules. It is IP66-rated for protection against dust and water, making it suitable for outdoor use.
- 6MP night moonlight sensor
- B016 lens with f/2.0 aperture
In the Box Bundle Items S16B DualFlex 6MP Outdoor Network Camera Body (No Lens) uvwvecqtwxqbtdvuu - 19.7" Ethernet Patch Cable
- Threaded Plug for microSD Card
- Stainless Steel Allen Screw
- Cable Lock with Bayonet Catch
6MP Day Sensor Module with B016 Lens (White) 6MP Night Sensor Module with B016 Lens (White) uvwvecqtwxqbtdvuu
Also Includes - 2 x 6.6' Long Sensor Cables
Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX MX-S16B-S3 S16B DualFlex 6MP Outdoor Network Camera with B016 Day and Night Sensor Modules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - S16B DualFlex 6MP Outdoor Network Camera Body (No Lens)
| | | Streaming Resolution | 6144 x 2048 at 2/6 fps
3072 x 2048 at 4/12 fps
2592 x 1944 at 5/15 fps
2048 x 1536 at 9/20/24 fps
1920 x 1080 at 13/25/34 fps
1280 x 720 at 26/42 fps 6144 x 2048 Resolution Requires Two Sensors | | Supported Video Compression | H.264, MJPEG, MxPEG | | Multi-View Streaming | Yes | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722, Opus | | Built-In Mic | Yes | | | | Security | FTPS, HTTPS | | Supported Protocols | DHCP, FTP, HTTP, IPv4/v6, NTP, RTP, RTSP, SIP (SIPS), SMTP, SNMP v1/v2c/v3 (MIB-II), UDP | | | | Application Programming Interface (API) | ONVIF Profile S, Genetec | | Analytics | Video Motion Detector
MxActivitySensor | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS | | | | Memory | 1 GB RAM / 512 MB Flash | | Recording Media | microSD (Up to 4 GB) 4 GB microSD Card Included | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | IR Illuminators | None | | Video Management Software | MxManagementCenter, MOBOTIX iOS App | | Internal Storage | None | | External Storage Options | NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | 7.5 W | | Material of Construction | Polymer | | Operating Temperature | -40 to 140°F / -40 to 60°C | | IP Rating | IP66 | | IK Rating | IK07 | | Dimensions | H: 5.1 x W: 4.5 x L: 1.3" / H: 130.0 x W: 115.0 x L: 33.0 mm | | Weight | 0.9 lb / 430 g | | | | Box Dimensions (LxWxH) | 7.5 x 5.9 x 3.6" | - 6MP Day Sensor Module with B016 Lens (White)
| Compatibility | MOBOTIX S15, S16, M15, and M16 camera modules | | Sensor | Day | | Resolution | 3072 x 2048 (6 MP) | | Horizontal Angle of View | Horizontal: 180°
Vertical: 180° | | IP Rating | IP66 | | Dimensions | 4.1 x 2.7 x 4.1" (10.5 x 6.8 x 10.5 cm) | | Weight | 5.1 oz (144 g) | | | | Box Dimensions (LxWxH) | 4.3 x 4.1 x 2.7" | - 6MP Night Sensor Module with B016 Lens (White)
| Compatibility | MOBOTIX S15, S16, M15, and M16 camera modules | | Sensor | Night | | Resolution | 3072 x 2048 (6 MP) | | Horizontal Angle of View | Horizontal: 180°
Vertical: 180° | | IP Rating | IP66 | | Dimensions | 4.1 x 2.7 x 4.1" (10.5 x 6.8 x 10.5 cm) | | Weight | 5.1 oz (144 g) | | | | Box Dimensions (LxWxH) | 4.3 x 4.1 x 2.6" |
