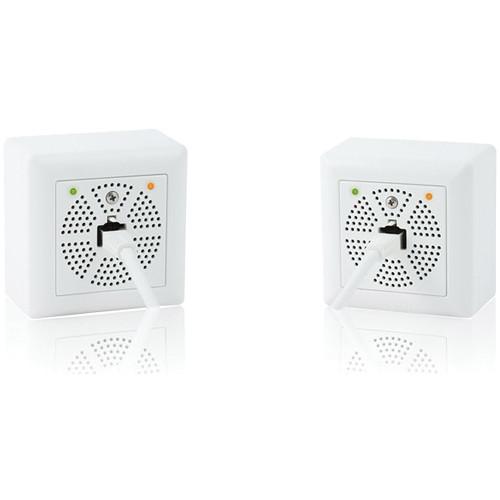

Product description Transfer both PoE and data over existing two-wire cabling using the Mx2wire+ Ethernet to Two-Wire Media Converter Kit from Mobotix. This converter set supports data transfer rates up to 30 Mbps at distances up to 1640' making it a viable networking solution for devices including IP cameras, PCs, VoIP phones, and more. To power PoE compatible devices the converter set supports up to 7 watts of power eliminating the need for standalone power adapters. Setup and installation are simplified thanks to the included standard socket frames and surface-mounted sockets. -
- Two-wire cables are used to connect 10/100MB Ethernet devices
- Ideal to connect a PC, WLAN, IP camera, IP telephone, or IP door station
- Data transfer distance up to 1640'; data rate is up to 30 Mbps, depending on distance
- Connected devices are supplied with up to 7 watts via PoE
- Simple installation in standard socket frames or surface-mounted sockets
In the Box MOBOTIX Mx2wire+ Ethernet to Two-Wire Media Converter Kit 2 x Mx2wire+ Housings and Circuit Boards Including Stainless Steel Screw (2 x 11 mm) 2 x Front Panels Including Stainless Steel Screws (M3 x 12 mm) 2 x Concave White Frames 2 x Convex White Frames 2 x Flat White Frames 8 x Self-Tapping Stainless Steel Screws (3 x 10 mm) 2 x Torx Wrench for Torx Screws 8 x Torx Screws (M3, 5 x 40 mm), Washers (3.5 mm), Screw anchors 2 x White On-Wall Sockets, Height of 35 mm, Including 8-Wire Plugs 4 x Two Plugs for 3-5 mm Cables and Two Plugs for 5-7 mm Cables (Alternative to 8-Wire Plug) 2 x Cavity Sockets Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX Mx2wire Ethernet to Two-Wire Media Converter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX MX-2WIREPLUS-SET-PW Specs | Transfer Rate | Coaxial Cable
0.02" (0.5 mm) inner conductor
with 164' (50 m)
Data: 50 Mbps, Power: 13 W
with 328' (100 m)
Data: 50 Mbps, Power: 11 W
with 1640.4' (500 m)
Data: 45 Mbps, Power: -
Telephone Line/Bell Wire
0.03" (0.8 mm)
with 164' (50 m)
Data: 50 Mbps, Power: 13 W
with 328' (100 m)
Data: 50 Mbps, Power: 13 W
with 656.1' (200 m)
Data: 50 Mbps, Power: 13 W
Installation Cable
0.002"2 (1.5 mm2)
with 164'(50 m)
Data: 50 Mbps, Power: 13 W
with 328'(100 m)
Data: 50 Mbps, Power: 13 W
with 656.1' (200 m)
Data: 50 Mbps, Power: 13 W
Network Cable
Cat 7
with 656.1' (200 m)
Data: 50 Mbps, Power: 13 W
with 3937 yd (300 m)
Data: 50 Mbps, Power: 13 W
with 6561.7 yd (500 m)
Data: 45 Mbps, Power: 12 W | | Interface | Front: RJ45 (Fast Ethernet, PoE), DC jack
Rear: Screw terminals to attach the 2-wire cable power supply connection | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 8.6 x 7.1 x 3.7" |
