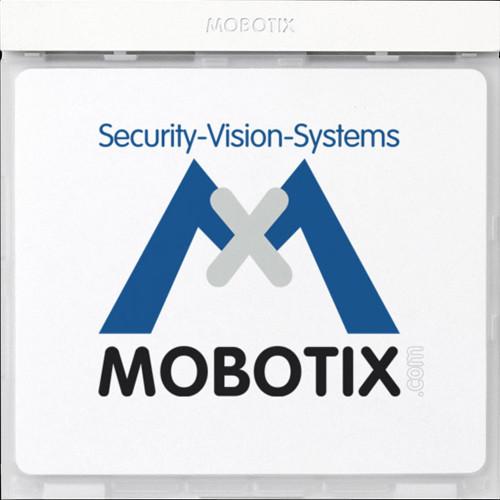

Product description The silver-colored Mx2wire Info Module from MOBOTIX is equipped with Mx2wire technology and a second Mx2wire unit for mounting inside the building. It offers users not only the standard info module functions but also the option to connect and supply power to the door station via 2-wire cabling instead of a network cable.
Using the Mx2wire system, an Ethernet network with PoE can be established using existing cables up to 1,640.4’ (500m). You can utilize a 2-wire cable that is no longer in use (analog telephone line, antenna cable or bell wire, for instance) to connect a 10/100 Mb/s Ethernet device such as a PC, WLAN, IP camera, IP telephone, or IP door station without having to lay any new cables or implement any other constructional measures. An (identical) Mx2wire unit is required at both ends of the cable, and it automatically configures itself as either the sender or the receiver.
The significant additional benefit of Mx2wire is that in addition to data, the power to operate PoE end devices (Power over Ethernet according to the IEEE 802.3af standard, a MOBOTIX network camera, for example) can also be transferred via the 2-wire cable.
Mx2wire is supplied via PoE from the network input cable. The connected end devices are supplied with up to 7W via PoE. Mx2wire does not therefore require its own power supply, as the network distributor (switch) typically supplies power over the data cables (PoE) so that the two Mx2wire units as well as the standard PoE end device are supplied power. Note: Mx2wire is delivered in a standard socket frame in different designs; however, it can also be used with the surface-mounted socket provided.
Actual cable lengths and data and power transmission rates depend on various factors at the installation location. Mx2wire - 2-wire cables are used to connect 10/100 MB Ethernet devices
- Suitable to connect a PC, WLAN, IP camera, IP telephone, IP door station
- Data transfer distance up to 1640.4' (500m); data rate is up to 30 Mb/s, depending on distance
- Connected devices are supplied with up to 7W via PoE
- Simple installation in standard socket frames or surface-mounted sockets
- Developed and manufactured by MOBOTIX in Germany
In the Box MOBOTIX Mx2wire Info Module with Mx2wire Technology (Silver) Mx2wire Unit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX Mx2wire Info Module with Mx2wire Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX MX-2WIREPLUS-INFO1-EXT-SV Specs | Transfer Rate | Coaxial Cable (0.02" / 0.60 mm Inner Conductor)
@ 164' (50 m): 50 Mb/s data; 13 W power
@ 328' (100 m): 50 Mb/s data; 11 W power
@ 1,640.4' (500.0 m): 45 Mb/s data
Telephone Line / Bell Wire (0.03" / 0.80 mm)
@ 164' (50 m): 50 Mb/s data; 13 W power
@ 328' (100 m): 50 Mb/s data; 13 W power
@ 656.17' (200.00 m): 50 Mb/s data; 13 W power
Installation Cable (1.5 mm²)
@ 164' (50 m): 50 Mb/s data; 13 W power
@ 328' (100 m): 50 Mb/s data; 13 W power
@ 656.17' (200.00 m): 50 Mb/s data; 13 W power
Network Cable (CAT-7)
@ 656.17' (200.00 m): 50 Mb/s data; 13 W power
@ 984.25' (300.00 m) : 50 Mb/s data; 13 W power
@ 1,640.4' (500.0 m): 45 Mb/s data; 12 W power |
