User Manual for MOBOTIX MxDisplay Click to enlarge the picture
Contents of the user manual for the MOBOTIX MxDisplay
- Product category: Indoor Stations MOBOTIX
- Brand: MOBOTIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOBOTIX Indoor Stations
 |
User manual for the MOBOTIX MxDisplay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOBOTIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOBOTIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOBOTIX product will considerably shorten its lifespan!
|

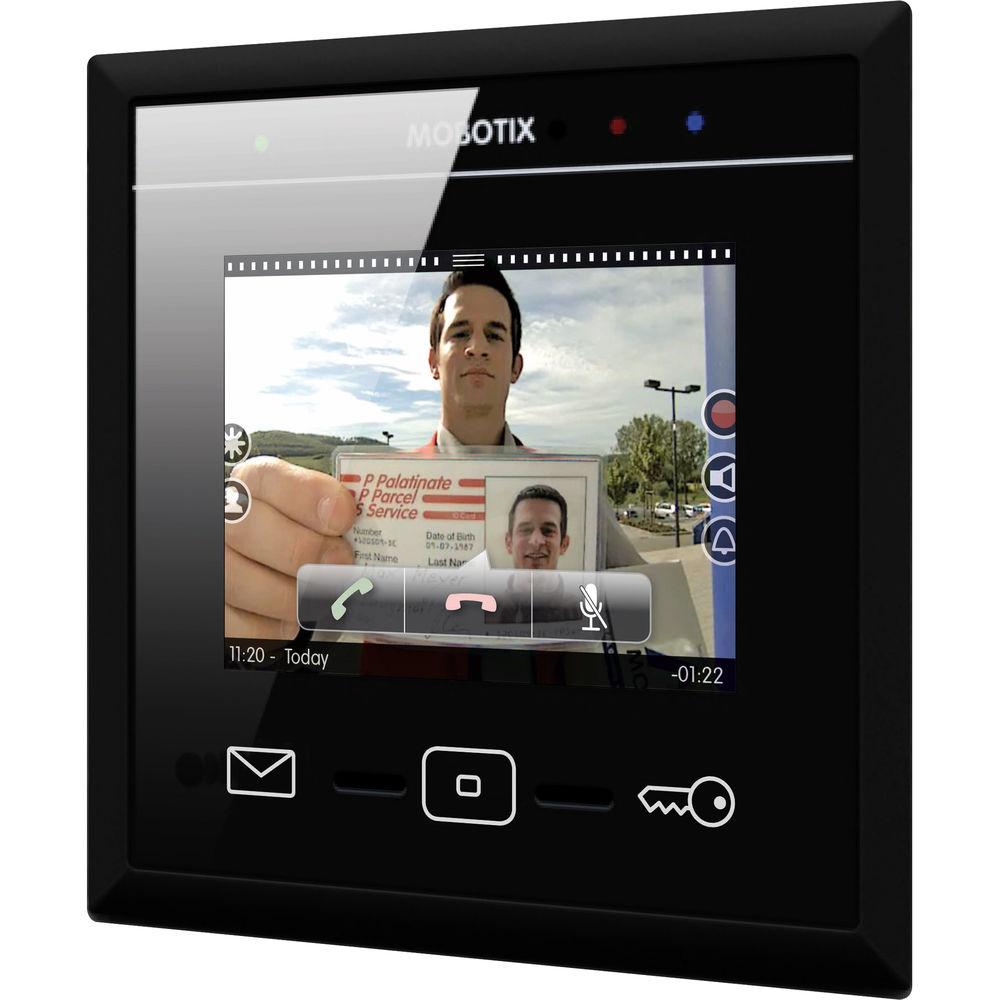

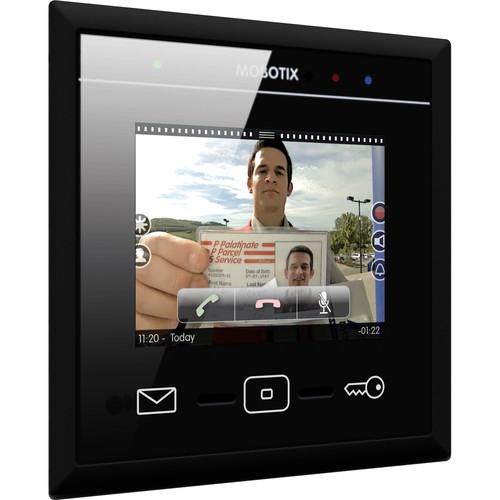

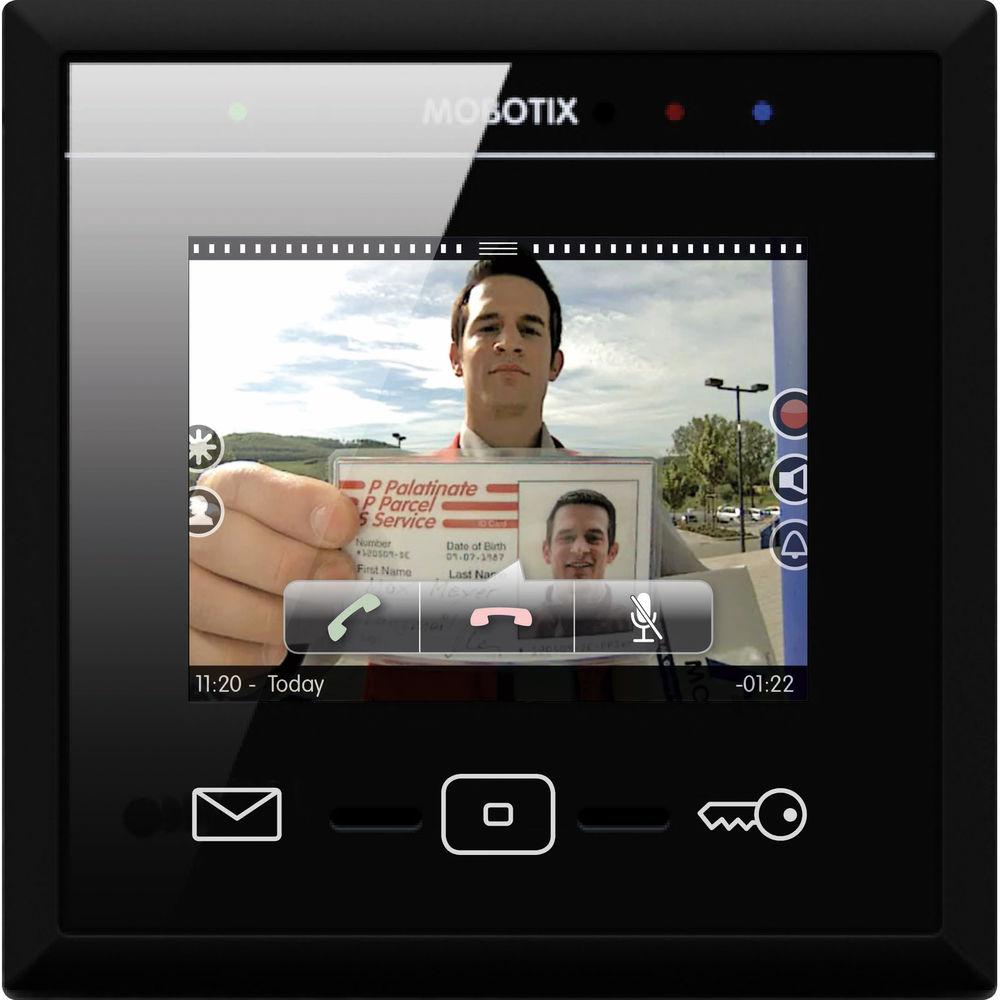

Product description The black MxDisplay+ from MOBOTIX is a wall-mountable control center with a 3.5" touchscreen display and three touch buttons. Built-in Wi-Fi and RFID functionalities make this unit easily configurable and allows for quick access to settings. From the unit, you can add and configure all connected MOBOTIX devices, such as cameras and video door stations, as well as other MxDisplay+ units (all available separately). Multiple MxDisplay+ monitors can be wirelessly connected, but each requires a PoE connection for power.
Designed for indoor use, you can navigate through options and settings using swipe and zoom gesture control right from the unit. View an overview of connected devices, retrieve and view video messages, or create a new access transponder card for a visitor. The unit fits into the frames and housings of door station modules and the FlatMount Frame (both available separately). A built-in microphone and speaker allow you to communicate with and grant access to visitors remotely. - Wall mountable, indoor station with a 3.5" touchscreen, microphone, speaker, and integrated video management software
- Live view and two-way audio with direct access to compatible cameras on your network
- Free MxSoftPanel software for Windows and Mac OS X available in order to use a personal computer as a remote interface
- Full duplex audio and speech transmission to and from the unit
- Setup and administration of RFID cards and access PINs
- Fast research and playback of recorded videos of all door stations and cameras with gesture control and by scrolling through clips using finger swipes
- Screens and buttons can be customized depending on the connected device
- Temporary deactivation of doorbell messages at individual MxDisplay+ points or at all remote stations
- Client for network and/or internet connection to MxDisplay+
- Camera and door station settings can be adjusted locally or via computer
- Power supplied via PoE or a standard power supply unit (12-48 VDC)
- Supports Wi-Fi wireless connection
- Allows central controlling, configuration, and access management of all connected cameras, functional boxes, and alarm sensors
- Connect multiple MxDisplay units together wirelessly
In the Box MOBOTIX MxDisplay+ (Black) Sealing Red RFID Admin Card Screwdriver Allen Wrench Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX MxDisplay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX MX-DISPLAY3-B Specs | Interfaces | Ethernet (single-wire terminal for installation cable AWG20 to 24)
Wi-Fi
RFID | | Ethernet | PoE (IEEE 802.3af, Class 2) | | Wi-Fi | IEEE 802.11b/g/n, 2.4 GHz
Client or access point
WPA2 PSK encryption | | RFID Protocol | Mifare DESFire EV1 | | Outputs | 1 x potential-free relay output
Maximum 48 VAC/VDC
Maximum 1 A
2 x MxBus connections (2 x 2 terminals) | | Power Supply | PoE or 12-48 VDC with MxBus | | Power Consumption | PoE or 48 VDC, 3.5 W (typical) | | Display Size | 3.5" / 8.9 cm | | Display Resolution | 320 x 240 pixels (CIF) | | Compatibility | MOBOTIX cameras and door stations with software 4.2.3.72 and higher (all 14/24 models, not for M12)
Supported Number of Cameras per Unit: 16 | | User Interface | Touchscreen and three non-mechanical function keys | | Audio | Built-in microphone and speaker
16-bit/16 kHz
Full-duplex with automatic volume adjustment, equalizer, and echo and noise suppression | | OS Compatibility | Windows and Mac | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions | 3.9 x 3.9 x 1.45" / 99 x 99 x 37 mm | | Weight | 9.52 oz / 270 g | | | | Box Dimensions (LxWxH) | 5.8 x 5.4 x 2.56" |
