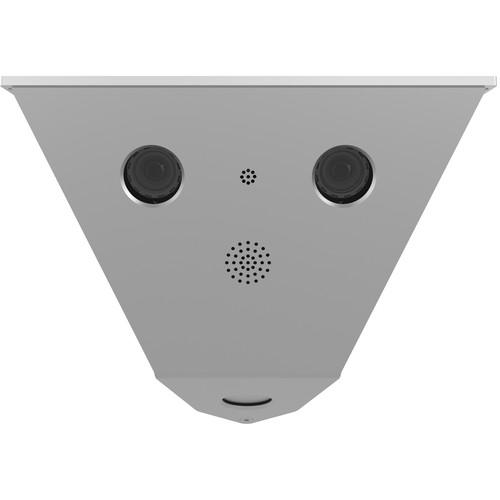

User Manual for MOBOTIX V16 MX-V16A-6D6N079 6MP Outdoor Network Corner-Mount Camera with Day & Night Sensor Modules Click to enlarge the picture
Contents of the user manual for the MOBOTIX V16 MX-V16A-6D6N079 6MP Outdoor Network
- Product category: Wired IP Cameras MOBOTIX
- Brand: MOBOTIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOBOTIX Wired IP Cameras
|
User manual for the MOBOTIX V16 MX-V16A-6D6N079 6MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOBOTIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOBOTIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOBOTIX product will considerably shorten its lifespan!
|
Product description Capture video evidence in extreme high-risk locations with the V16 MX-V16A-6D6N079 6MP Outdoor Network Corner-Mount Camera from MOBOTIX. Equipped with day and night sensor modules, this camera delivers up to 6144 x 2048 resolution at 6 fps. The camera's B079 7.9mm lenses render horizontal and fields of view of 45° and 34° respectively. A microphone and a speaker are built into the camera housing, allowing for two-way audio communication.
The V16 comes with an internal 4GB microSD card for onboard storage of recorded footage. Designed for simple connectivity, the camera uses PoE technology to transfer data and power over a single cable. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - Lenses can be aligned based on application to avoid blind spots
- IK10-rated bullet-resistant high-grade steel housing designed to withstand vandal attacks
- For installation in corners
- Camera and data security includes user and group management, SSL connections, IP-based access control, IEEE 802.1x network access control, intrusion detection, and digital image signature
- USB interface to connect to external USB device
- Genetec protocol integration
- Programming interface (HTTP-API)
- Programmable exposure zones
- Snapshot recording (pre/post-alarm images)
- Continuous recording with audio
- Event recording with audio
- Bidirectional audio in browser
- VoIP telephony (audio/video, alert)
- Customized voice messages
- Playback and QuadView via web browser
- Time-controlled flexible event logic
- Event video and image transfer via FTP and email
- Weekly schedules for recordings and actions
- Master/slave communication
- Remote alarm notification
- MxMessageSystem for sending and receiving MxMessages
- Intelligent 3D motion detection with integrated MxActivitySensor
- MxManagementCenter VMS for Windows & Mac computers
- MOBOTIX mobile app compatible with iOS 6.0 and above
- RS-232 interface via separately available MX-232-IO-Box interface box
- Simultaneous streaming of up to three video codecs (MxPEG, MJPEG, and H.264)
- PoE enabled, consumes under 7W
In the Box MOBOTIX V16 MX-V16A-6D6N079 6MP Outdoor Network Corner-Mount Camera with Day & Night Sensor Modules M5x12 Stainless Steel Security Screw Allen Wrench (2mm) Screwdriver Bit for Security Screw Multifunctional Tool Module Wrench Drilling Template Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MOBOTIX V16 MX-V16A-6D6N079 6MP Outdoor Network Corner-Mount Camera with Day & Night Sensor Modules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX V16 Specs | | | Sensor | 2 x 6 MP 1/1.8" CMOS | | Focal Length | 7.9mm | | Maximum Aperture | f/1.8 | | Zoom | Digital: 8x | | Lens Field of View | Horizontal: 45°
Vertical: 34° | | Minimum Illumination | Color: 0.005 Lux
B&W: 0.001 Lux | | | | Streaming Resolution | 6144 x 2048 at 2/6 fps
3072 x 2048 at 4/12 fps
2592 x 1944 at 5/15 fps
2048 x 1536 at 9/20/24 fps
1920 x 1080 at 13/25/34 fps
1280 x 720 at 26/42 fps | | Supported Video Compression | H.264, MJPEG, MxPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711, G.722, Opus | | Built-In Mic | Yes | | Built-In Speaker | Yes | | | | Security | HTTPS, IEEE 802.1X | | Supported Protocols | DHCP, FTP, HTTP, IPv4/v6, NTP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), UDP | | | | Application Programming Interface (API) | HTTP-API | | Analytics | Video Motion Detection, MxActivitySensor | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS | | | | Memory | 1 GB RAM / 512 MB Flash | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | IR Illuminators | None | | Video Management Software | MxManagementCenter, Mobile MOBOTIX App | | Certifications | EN 55024, FCC (Part 15 Class A), as per Manufacturer | | Internal Storage | None | | External Storage Options | NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | PoE: 7 W | | Material of Construction | Stainless Steel | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions | H: 7.7 x W: 10.2 x L: 7.1" / H: 19.6 x W: 26.0 x L: 18.0 cm | | Weight | 10.4 lb / 4.7 kg |
