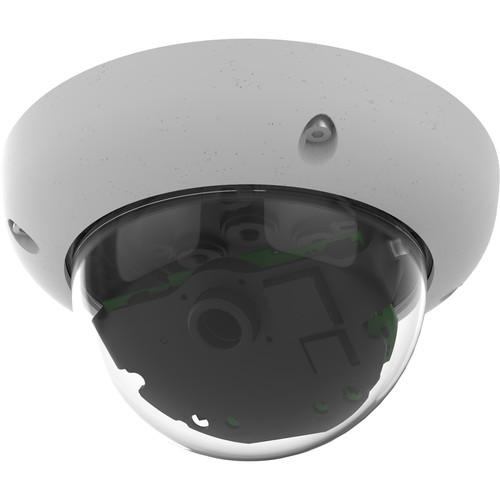

User Manual for MOBOTIX v26 6MP Network Camera with Day Sensor Module & B036 3.6mm Lens Click to enlarge the picture
Contents of the user manual for the MOBOTIX v26 6MP Network Camera with
- Product category: Wired IP Cameras MOBOTIX
- Brand: MOBOTIX
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MOBOTIX Wired IP Cameras
|
User manual for the MOBOTIX v26 6MP Network Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MOBOTIX product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MOBOTIX user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MOBOTIX product will considerably shorten its lifespan!
|
Product description The white v26 6MP Network Camera with Day Sensor Module & B036 3.6mm Lens from MOBOTIX has a 1/1.8" progressive scan CMOS sensor to capture 3072 x 2048 resolution video at up to 12 fps. The included B036 3.6mm fixed lens delivers a 103° horizontal field of view. Recorded footage is stored on an internal 4GB microSD card. Integrated PoE technology simplifies connectivity by transferring data and power over one cable. Video management for this device is possible thanks to the MxManagementCenter VMS for Windows & Mac PCs, and the MOBOTIX app for iOS devices. This camera is IK10-rated for vandal resistance. - Day sensor module included
- Camera and data security includes user and group management, SSL connections, IP-based access control, IEEE 802.1x network access control, intrusion detection, and digital image signature
- USB interface to connect to external USB device
- -90 to 0° manually adjustable tilt angle of lens
- Programmable exposure zones
- Playback and QuadView via web browser
- Time controlled flexible event logic
- Event video and image transfer via FTP and email
- Weekly schedules for recordings and actions
- Master/slave communication
- Remote alarm notification
- MxMessageSystem for sending and receiving MxMessages
- Video analysis includes video motion sensor, MxActivitySensor, and MxAnalytics
- MxManagementCenter VMS for Windows & Mac PCs
- MOBOTIX mobile app compatible with iOS 6.0 and above
- 2 x I/O and RS-232 interfaces via optional accessories available separately
- Ceiling mountable with mounting hardware that is available separately
In the Box MOBOTIX v26 6MP Network Camera with Day Sensor Module & B036 3.6mm Lens (White) Sealing 19.7" / 50cm Black Ethernet Patch Cable 2.5mm Allen Wrench TX20 Torx Wrench 4GB microSD Card (Installed) Red Lens Wrench 4 x Silver Allen Screws M4 x 16mm 4 x
|
Upload User Manual
Have you got an user manual for the MOBOTIX v26 6MP Network Camera with Day Sensor Module & B036 3.6mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMOBOTIX V26 Specs | | | Sensor | 6 MP 1/1.8" CMOS | | Focal Length | 3.6mm | | Maximum Aperture | f/1.8 | | Lens Field of View | Horizontal: 103°
Vertical: 77° | | Minimum Illumination | Color: 0.005 Lux | | | | Streaming Resolution | 3072 x 2048 at 4/12 fps
2592 x 1944 at 5/15 fps
2048 x 1536 at 9/20/24 fps
1920 x 1080 at 13/25/34 fps
1280 x 720 at 26/42 fps | | Supported Video Compression | H.264, MJPEG, MxPEG | | Multi-View Streaming | Yes | | | | Security | FTPS, HTTPS, IEEE 802.1X | | Supported Protocols | DHCP, FTP, HTTP, IPv4/v6, NTP, RTP, RTSP, SIPS, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, UDP | | | | Application Programming Interface (API) | ONVIF Profile S supported by future software update | | Analytics | Video motion sensor, MxActivitySensor, MxAnalytics | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Mobile Operating Systems | iOS | | | | Memory | 1 GB RAM / 512 MB Flash | | Recording Media | microSD (Up to 4 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45 | | Video Management Software | MxManagementCenter, Mobile MOBOTIX App | | Internal Storage | None | | External Storage Options | NAS | | Power Source | PoE 802.3af (15 W) | | Power Consumption | PoE: 5 W | | Material of Construction | Polymer | | Operating Temperature | 32 to 104°F / 0 to 40°C | | IP Rating | IP20 | | IK Rating | IK10 | | Dimensions |
