User manual

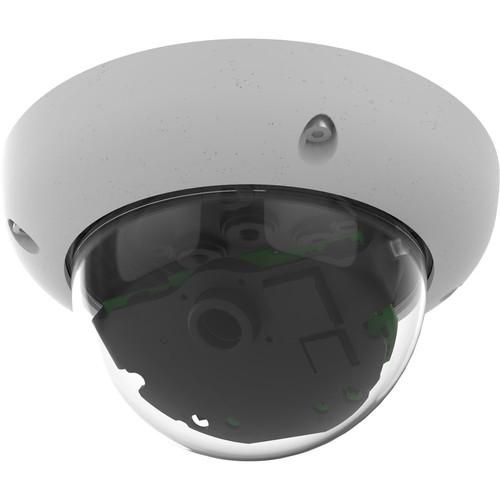

MOBOTIX v26B Mx-v26B-6N-b 6MP Network Dome

User Manual for MOBOTIX v26B Mx-v26B-6N-b 6MP Network Dome Camera Body with Night Sensor

• Product category: Wired IP Cameras MOBOTIX
• Brand: MOBOTIX
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for MOBOTIX Wired IP Cameras

Product description

• Mx6 system 2nd-generation platform with MxBus and H.264

• ONVIF Profile S compliant

• Internal microSD slot for onboard recording of footage (4GB card preinstalled)

• For ceiling installation; optional on-wall set with audio available

• Allows up to 90° of vertical manual adjustment of separately available lens

• MxAnalytics video analysis tools (heat maps and counting corridors)

• Integrated vibration and temperature sensor

• Camera and data security includes user and group management, SSL connections, IP-based access control, IEEE 802.1x network access control, intrusion detection, and digital image signature

• USB interface to connect to external USB device

• Digital zoom and pan

• Genetec protocol integration

• Programming interface (HTTP-API)

• Programmable exposure zones

• Snapshot recording (pre/post-alarm images)

• Privacy zone scheduling

• Playback and QuadView via web browser

• Time-controlled flexible event logic

• Event video and image transfer via FTP and email

• Weekly schedules for recordings and actions

• Master/slave communication

• Animated logos on image

• Remote alarm notification

• MxMessageSystem for sending and receiving MxMessages

• Intelligent 3D motion detection with integrated MxActivitySensor

• MxManagementCenter VMS for Windows & Mac computers

• MOBOTIX mobile app compatible with iOS 6.0 and above

• RS-232 interface via separately available MX-232-IO-Box interface box

• Simultaneous streaming of up to three video codecs (MxPEG, MJPEG, and H.264)

• PoE enabled, typically consumes under 5W

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

MOBOTIX V26B Specs

Memory	1 GB RAM / 512 MB Flash
Recording Media	microSD (Up to 400 GB)
Pan/Tilt	None
I/O Connections	1 x RJ45
IR Illuminators	None
Video Management Software	MxManagementCenter, Mobile MOBOTIX App
Certifications	EN 55024, as per Manufacturer
Internal Storage	None
External Storage Options	NAS
Power Source	PoE 802.3af (15 W)
Power Consumption	PoE: 5 W
Material of Construction	Polymer
Operating Temperature	32 to 104°F / 0 to 40°C
IP Rating	IP20
IK Rating	IK10
