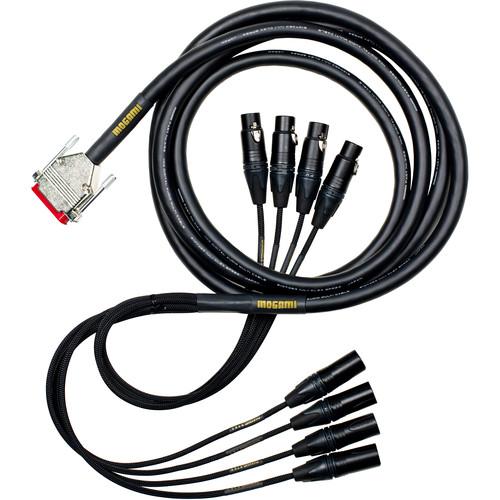

Product description This 15' Mogami Gold AES TD DB-25 to 4 XLR Male & 4 XLR Female Digital Breakout Cable enables you to connect a digital audio interface with Tascam Digital DB-25 wiring protocol to a device with AES/EBU XLR I/O. It is compatible with popular digital recording formats including Avid, Digidesign, Panasonic, and Tascam digital recording machines. The cable offers eight channels of AES/EBU I/O and meets AES/EBU specifications with a 110 Ohm impedance. It features the company's W3162 8-core AES digital cable, one DB-25 male connector at one end, four XLR male connectors and four XLR female connectors at the other, gold-plated contacts, a spiral shield, and a flexible PVC jacket—all designed for loss-free data transmission. - Key Features
-
- 15' AES/EBU breakout cable
- Connect digital audio interface with Tascam Digital DB-25 wiring protocol to a device with AES/EBU XLR I/O
- Supports 8 channels I/O
- One DB-25 connector to four XLR male and four XLR female AES/EBU connectors
- Connectors with gold-plated contacts
- Uses 8-core W3162 AES digital cable (two conductors per core)
- Rigid adherence to 110 Ohm AES/EBU standards
- Precision dielectrics for loss-free transmission
- Spiral shield
- Supports popular digital recording formats including Avid, Digidesign, Panasonic, and Tascam
UPC: 801813085259 In the Box Mogami Gold AES TD DB-25 to 4 XLR Male & 4 XLR Female Digital Breakout Cable (15') Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogami Gold AES TD DB-25 to 4 XLR Male & 4 XLR Female Digital Breakout Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogami GOLD AES TD DB25 XLR-15 Specs | Standards | 110 Ohm AES/EBU | | Channels | 8 x digital channels I/O | | Connector 1 | DB-25, male, Tascam Digital (TD) pinout | | Connector 2 | 4 x XLR, male AES/EBU
4 x XLR, female AES/EBU | | Cable | Mogami W3162 AES digital | | Conductors | 8 x cores
2 x conductors per core | | Outer Diameter | 0.543" / 13.8 mm | | Wire Gauge | 24 AWG | | Shield | Spiral shield | | Jacket | PVC | | Insulation | Cellular polypropylene | | Length | 15' / 4.6 m | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 11.0 x 6.7 x 5.2" |
