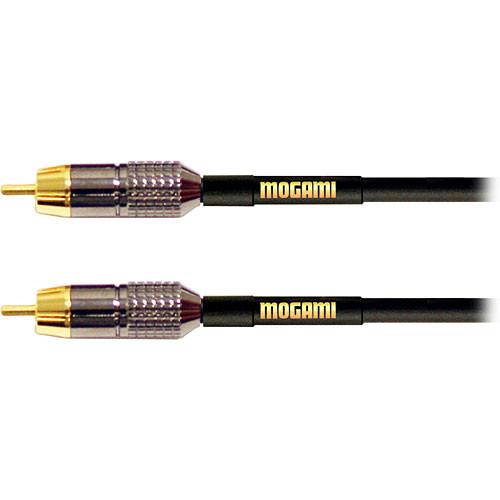

User Manual for Mogami Gold RCA to RCA Cable Click to enlarge the picture
Contents of the user manual for the Mogami Gold RCA to RCA Cable
- Product category: RCA to RCA Cables Mogami
- Brand: Mogami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mogami RCA to RCA Cables
|
User manual for the Mogami Gold RCA to RCA Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mogami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mogami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mogami product will considerably shorten its lifespan!
|
Product description The 6' Mogami Gold RCA to RCA is an RCA male to RCA male cable that uses the company's Neglex technology to transfer audio or video with maximum definition and signal transparency, and low signal loss. It offers signal protection in environments susceptible to electromagnetic interference (EMI) noise, such as concert stages, theaters, clubs, film/video sets, and more.Featuring a 75-Ohm impedance, the cable is well suited for composite video signal transmission or for any digital device connection that supports the S/PDIF digital audio interconnect over coaxial cable. - Key Features
-
- Mogami Neglex cable technology with oxygen-free copper (OFC) wiring and overall served ultra-high-density spiral shield with stranded copper
- Transfer audio with maximum definition, signal transparency, and low signal loss
- Offers signal protection in environments susceptible to electromagnetic interference (EMI) noise
- Can be used for composite analog video transmission or for any digital device connection that supports the S/PDIF standard on a 75-Ohm coaxial connection
- Precision-wound, dual-spiral shield, with one layer achieving 100% coverage
- Low capacitance
- Corrosion-free, gold-plated RCA phono plugs
- Low-profile mold with improved strain relief design for strength, durability, and longer flex life
UPC: 801813089974 In the Box Mogami Gold RCA to RCA Cable (6') Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogami Gold RCA to RCA Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogami GOLD RCA-RCA-06 Specs | Cable Type | RCA to RCA patch cable, mono | | Connector 1 | RCA male, gold-plated | | Connector 2 | RCA male, gold-plated | | Impedance | 75 Ohms | | Capacitance | 17.4pF/ft / 57pF/m (at 1 kHz, 68°F / 20°C) | | Conductor | 24 AWG
Oxygen-free copper (OFC) | | Insulation | Diameter: 0.1" / 2.6 mm
Material: XLCPE (Cross-Linked Cellular PE)
Color: Clear | | Shielding | Mogami ultra-high-density served spiral shield, with stranded copper (100% coverage)
Served Shield: 70 / 0.12 A, approximately | | Jacket | Diameter: 0.19" / 4.8 mm
Material: Flexible PVC
Color: Black | | Mechanical Characteristics | Flex Life: 16,000 cycles
Tensile Strength: 274N
Applicable Temperature: -4 to 158°F / -20 to 70°C | | Length | 6.0' / 1.8 m | | Weight | Not supplied by manufacturer | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 7.795 x 5.433 x 0.472" |
