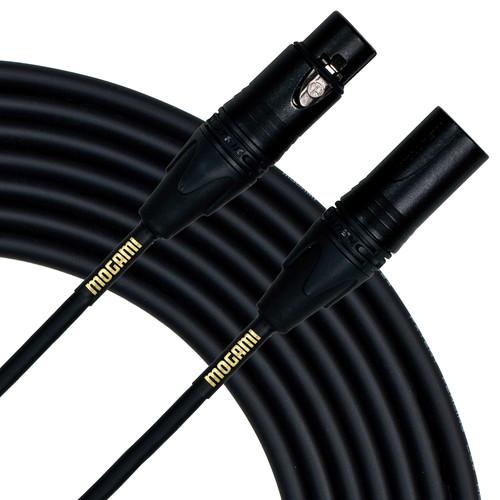

User Manual for Mogami Gold Studio XLR Female to XLR Male Microphone Cable Click to enlarge the picture
Contents of the user manual for the Mogami Gold Studio XLR Female to
- Product category: XLR to XLR Cables Mogami
- Brand: Mogami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mogami XLR to XLR Cables
|
User manual for the Mogami Gold Studio XLR Female to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mogami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mogami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mogami product will considerably shorten its lifespan!
|
Product description The black, 75' Mogami Gold Studio XLR Female to XLR Male Microphone Cable is a high-quality, 4-conductor cable engineered for maximum rejection of RFI and EMI, accurate signal transmission with low noise, and durability. It uses the company's Neglex twisted, double-conductor quad cable with a spiral, bare copper shield, which is effective in maintaining signal integrity, even when used with unbalanced equipment, in professional or home studios suffering from wiring and grounding problems.The cable is terminated with black-body, gold-plated XLR connectors, and features a 0.236" diameter jacket, ideal for applications where a small-diameter quad mic cable is required. Key Features - Studio and broadcast-quality microphone cable wired with Mogami 2534 Neglex twisted quad-conductor cable
- Ideal for home studios suffering from wiring and grounding problems—maintains signal quality when used with unbalanced equipment
- Served (spiral) bare copper shield for long-lasting protection against RFI and EMI
- XLPE (Cross-Linked Polyethylene) conductor insulation
- Terminated with black-body, 3-pin XLR connectors (XLR female to XLR male)
- Gold-plated contacts to prevent corrosion
- 0.236" jacket diameter—for use where a small-diameter quad mic cable is required
- Limited lifetime warranty
UPC: 801813149500 In the Box Mogami Gold Studio XLR Female to XLR Male Microphone Cable (Black, 75') Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogami Gold Studio XLR Female to XLR Male Microphone Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogami GOLD STUDIO-75 Specs | Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 75' / 22.86 m | | Outer Diameter | 0.236" / 6 mm | | Shielding | Bare Copper Spiral | | Conductor Material | Oxygen-Free Copper (OFC) | | Number of Conductors | 4 | | Wire Gauge | 24 AWG | | Contact Plating | Gold | | Jacket Type | Polyvinyl Chloride (PVC) | | Insulation Type | Polyethylene | | Conductor Capacitance | 29.6 pF/ft at 1 kHz | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 9.5 x 9.5 x 1.5" |
