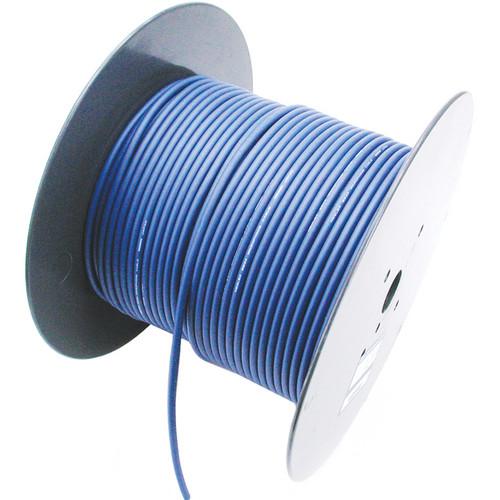

User Manual for Mogami W2534 C 06 Neglex Quad High-Definition Microphone Cable Click to enlarge the picture
Contents of the user manual for the Mogami W2534 C 06 Neglex Quad
- Product category: Bulk Audio Cable Mogami
- Brand: Mogami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mogami Bulk Audio Cable
|
User manual for the Mogami W2534 C 06 Neglex Quad contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mogami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mogami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mogami product will considerably shorten its lifespan!
|
Product description The W2534 C 06 Neglex Quad High-Definition Microphone Cable (328', Blue) from Mogami is ideal for home studios suffering from wiring and grounding problems, and for applications where intense RFI interference is a problem. It is designed for use with unbalanced equipment, such as high-quality pre-amp, amp inputs and tape decks. It provides an improvement in signal-to-noise of 10 to 20 dB over equivalent twisted pair cables. It is more effective in cancelling noise that can get past even the best of shields, which is critical in an environment of high RF and EM interference. Originally designed for BANTAM patch-cords, this cable can be ideally used where a small diameter Quad microphone cable is required. - Conductor insulation is XLPE (Cross-Linked Polyethylene), which has excellent electrical characteristics and prevents shrink-back during soldering
- Served (spiral) bare copper shield is superior to foil or braided shields for sound quality and simplifies termination
In the Box Mogami W2534 C 06 Neglex Quad High-Definition Microphone Cable (328', Blue) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogami W2534 C 06 Neglex Quad High-Definition Microphone Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogami W2534 C 06 Specs | Number of Conductors | 4 (Quad) | | Conductor | Details: 20/0.12 OFC
Size: 0.226 mm² (#24 AWG) | | Insulation | Overall Diameter: 1.6Ø (0.063" / 1.6 mm)
Material: XLCPE (Cross-Linked Polyethylene)
Color: Blue / Clear (Quad) | | Shielding | Approximately 64/0.18 A | | Jacket | Overall Diameter: 6.0Ø (0.236" / 5.99 mm)
Material: Flexible PVC
Color: Blue | | DC Resistance | At 68°F (20°C): Inner Conductor: 0.025 Ω/feet (0.083 Ω/m)
Shield: 0.0037 Ω/Feet (0.012 Ω/m) | | Capacitance | At 1 kHz, 68°F (20°C) K0: 20 pF/feet (65 pF/m)
K1: 4 pF/feet (13 pF/m)
K2: 1.2 pF/feet (4 pF/m)
Balanced Quad Connection: Conductor: 29.6 pF/feet (97 pF/m), Shield: 33.6 pF/Ft (110 pF/m) | | Inductance | At 1 kHz, 68°F (20°C)
0.12 µH/feet (0.4 µH/m) | | Noise | Electrostatic: 50 mV Maximum
Electromagnetic: 0.15 mV Maximum | | Microphonics | At 50KΩ/ Load:
430 mV Maximum | | Voltage Breakdown | Must withstand at 500 VDC / 15 seconds | | Insulation Resistance | 100,000 M Ω/ × m Minimum at 125 VDC, 68°F (20°C) | | Flex Life | 11,000 cycles | | Emigration | Non-emigrant to ABS | | Tensile Strength | 686 N | | Operating Temperature | -4 to158°F (-20 to 70°C) | | Length | 328' (100 m) | | Weight | 12.12 lb (5.5 kg) |
