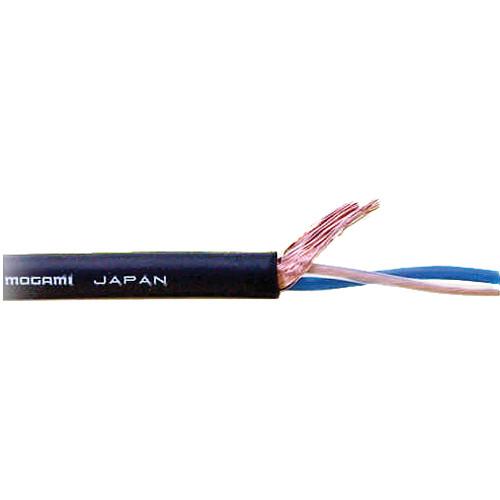

User Manual for Mogami W2549 Neglex-Type Balanced Microphone Cable Click to enlarge the picture
Contents of the user manual for the Mogami W2549 Neglex-Type Balanced Microphone Cable
- Product category: Bulk Audio Cable Mogami
- Brand: Mogami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mogami Bulk Audio Cable
|
User manual for the Mogami W2549 Neglex-Type Balanced Microphone Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mogami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mogami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mogami product will considerably shorten its lifespan!
|
Product description The Mogami W2549 Neglex-Type Balanced Microphone Cable (Black, 656'/200 m) is designed using Mogami’s Neglex OFC to provide good quality audio reproduction in almost any recording application. It features #22AWG conductors and very low capacitance. The 100% coverage-served shield and twisted pair construction is good at preventing noise caused by electromagnetic interference. This cable is recommended when extended high frequencies are important or where long cable runs may be needed. - Blue/clear color insulation
UPC: 801813004229 In the Box Mogami W2549 Neglex-Type Balanced Microphone Cable (Black, 656'/200 m) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogami W2549 Neglex-Type Balanced Microphone Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogami W2549 00 E Specs | Conductor | Quantity: 2
Details: 30/0.12 OFC
Size: 0.34 mm² (#22 AWG) | | Insulation | Overall Diameter: 0.08" (1.9 mm)
Material: XLPE (Cross-Linked Polyethylene)
Resistance: 100,000 MΩ × m minimum at 125 VDC, 68°F (20°C) | | Shield | Served approximately 64 / 0.18 A | | Jacket | Overall Diameter: 0.24" (6 mm)
Material: Flexible PVC | | DC Resistance | At 68°F (20°C)
Inner Conductor: 0.018 Ω/Ft (0.058 Ω/m)
Shield: 0.004 Ω/Ft (0.013 Ω/m) | | Capacitance | At 1 kHz, 68°F (20°C)
K0: 23 pF/Ft (76 pF/m)
K1: 3.4 pF/Ft (11 pF/m) | | Inductance | 0.24 µH/Ft (0.8 µH/m) at 1 kHz 68°F (20°C) between conductors | | Noise | Electrostatic: 50 mV maximum
Electromagnetic: 0.15 mV maximum | | Microphonics | 30 mV at 50 kΩ load | | Voltage Breakdown | Must withstand at 125 VDC / 15 sec | | Flex Life | 14,500 cycles | | Tensile Strength | 657 N | | Emigration | Non-emigrant to ABS | | Temperature | -4 to 158°F (-20 to 70°C) | | Roll | Size: 656' (200 m) | | Weight | Per 656' (200 m): 24.25 lb (11 kg) | | | | Package Weight | 24.25 lb | | Box Dimensions (LxWxH) | 11.9 x 11.9 x 8.3" |
