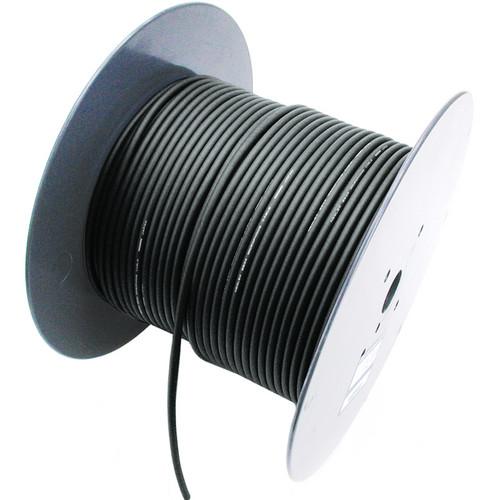

Product description The Mogami W2552 Microphone Cable (Black, 164'/50 m) is a high performance low impedance balanced microphone cable. It is small in size and has a special rubber-like PVC jacket, which makes it very flexible and exhibits excellent resistance to rough handling and abrasion. UPC: 801813008319 In the Box Mogami W2552 Microphone Cable (Black, 164'/50 m) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogami W2552 Microphone Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogami W2552 00 A Specs | Conductor | Quantity: 2
Type: 12/0.12 A (T250D3)
Size: 0.135 mm² (26 AWG) | | Outer Diameter | 197" (5 mm) | | Flex Life | 11,000 cycles | | Tensile Strength | 421 N | | Insulation | Diameter: 0.06" (1.5 mm)
Material: LNXLPE (low noise cross-linked polyethylene)
Resistance: 100,000 MW × m minimum at 125 VDC, 68°F (20°C) | | Shield | Served Shield: Approximately 67/0.12 A | | Jacket | Diameter: 0.2" (5 mm)
Material: Flexible PVC | | DC Resistance | Inner Conductor: 0.043 W/ft (0.14 W/m)
Shield: 0.003 W/m(0.009 W/ft) | | Capacitance | At 1 KHz, 68°F (20°C)
K0: 27 pF/ft (90 pF/m)
K1: 3 pF/ft (10 pF/m)
Quad-connection | | Inductance | 0.24 µH/ft (0.8 µH/m) (between conductors at 1 kHz 20°C) | | Noise | Electrostatic Noise: 50 mV (maximum)
Electromagnetic Noise: 0.15 mV (maximum) | | Microphonics | Up to 30 mV (at 50 kW load) | | Emigration | Non-emigrant to ABS | | Temperature | -4 to 158°F (-20 to 70°C) | | Roll | Length: 164' (50 m)
Weight: 4.13 lb (1.87 kg) | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 9.5 x 7.5 x 1.9" |
