User Manual for Mogami W2919 00 D Superflexible Studio Speaker Cable Click to enlarge the picture
Contents of the user manual for the Mogami W2919 00 D Superflexible Studio
- Product category: Bulk Audio Cable Mogami
- Brand: Mogami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mogami Bulk Audio Cable
|
User manual for the Mogami W2919 00 D Superflexible Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mogami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mogami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mogami product will considerably shorten its lifespan!
|

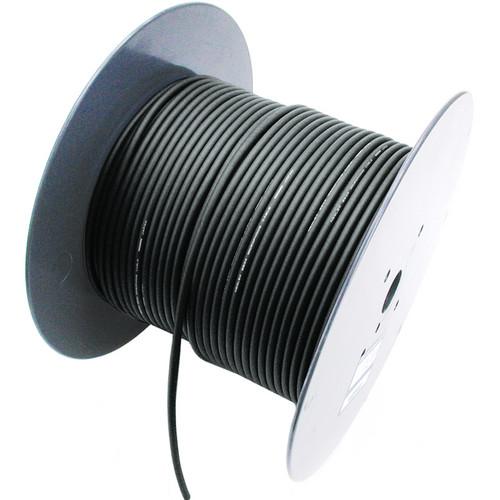

Product description The Mogami W2919 00 D Superflexible Studio Speaker Cable (Black, 500’ / 153 m) is designed to deliver maximum performance from state-of-the-art Tri-Amp Systems. - Offers true audiophile performance for accurate sound transmission with clear transparent response, yet possess a rugged superflexibility for the most demanding professional applications
- Each conductor features many strands in rope-lay of famous Mogami 'NEGLEX' oxygen-free-copper within color-coded PVC insulation
- A tough, low profile matte black superflexible PVC jacket protects the cable
In the Box Mogami W2919 00 D Superflexible Studio Speaker Cable (Black, 500' / 153 m) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogami W2919 00 D Superflexible Studio Speaker Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogami W2919 00 D Specs | Number of Conductors | 6 | | Overall Diameter | Ø0.504" (12.8 mm)
Insulation: Ø0.134" (3.4 mm) PVC | | Jacket Material | Flexible PVC, Matte Black | | DC Resistance | At 20°C: 0.0024 Ω/ft (0.008 Ω/m) | | Inductance | At 1 kHz, 68°F (20°C)
1-2: 0.12 µH/ft (0.4 µH/m)
1-3: 0.14 µH/ft (0.45 µH/m)
1-4: 0.20 µH/ft (0.65 µH/m) | | Capacitance | At 68°F (20°C)
1-2:
38.4 pF/ft (126 pF/m) @ 100 Hz
31.1 pF/ft (102 pF/m) @ 1 KHz
26.5 pF/ft (87 pF/m) @ 10 KHz
24.4 pF/ft (80 pF/m) @ 50 KHz
23.8 pF/ft (78 pF/m) @ 100KHz
1-3:
28.7 pF/ft (94 pF/m) @ 100 Hz
22.0 pF/ft (72 pF/m) @ 1 kHz
18.6 pF/ft (61 pF/m) @ 10 KHz
17.1 pF/ft (56 pF/m) @ 50 kHz
16.8 pF/ft (55 pF/m) @ 100 kHz
1-4:
25.0 pF/ft (82 pF/m) @ 100 Hz
18.9 pF/ft (62 pF/m) @ 1 kHz
15.9 pF/ft (52 pF/m) @ 10 KHz
14.6 pF/ft (48 pF/m) @ 50 kHz
14.0 pF/ft (46 pF/m) @ 100 kHz | | Voltage Breakdown | Must withstand at 500 VDC/15 seconds | | Insulation Resistance | 10,000 MΩ × m minimum at 125 VDC, 20°C | | Emigration | Jacket Material: Non-emigrant to ABS resin | | Temperature | -4 to 158°F (-20 to 70°C) | | Size | Roll: 500' (153 m) | | Standard | UL13 CL2 75°C | | Conductor Size | 2.5 mm² (#14AWG) | | Weight | 85.98 lb (39 kg) |
