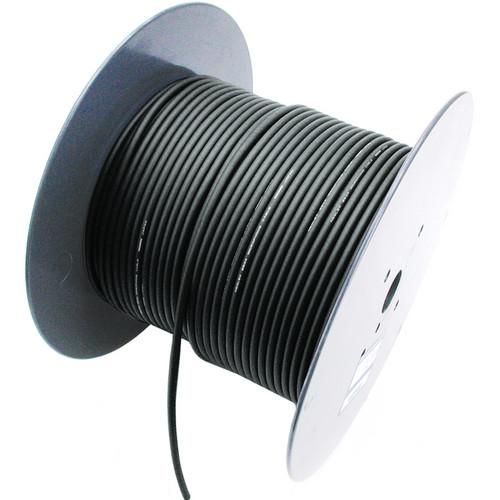

User Manual for Mogami W2921 Studio Speaker Cable Click to enlarge the picture
Contents of the user manual for the Mogami W2921 Studio Speaker Cable
- Product category: Bulk Audio Cable Mogami
- Brand: Mogami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mogami Bulk Audio Cable
|
User manual for the Mogami W2921 Studio Speaker Cable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mogami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mogami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mogami product will considerably shorten its lifespan!
|
Product description The black 500’ W2921 Studio Speaker Cable from Mogami is designed to deliver maximum performance from the Bi-Amp Systems. This cable offers sound transmission with a clear, transparent response, and possesses rugged flexibility for most professional applications. Each of the 4 conductors features many NEGLEX oxygen-free-copper strands in rope-lay configuration enclosed within a color-coded PVC insulation. A tough, low-profile, matte black, flexible PVC jacket protects the conductors. In the Box Mogami W2921 Studio Speaker Cable (Black, 500') Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogami W2921 Studio Speaker Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogami W2921 00 D Specs | Conductor | Quantity: 4
Size: 2.53 mm² (14 AWG)
Details: 7/32/0.12 NEGLEX OFC (bare) Applicable for standard 2-conductor speaker cable by quad-connection | | Insulation | Overall Diameter: 0.13" (3.4 mm)
Material: PVC
Resistance: 10,000 MΩ × m, minimum at 125 VDC, 68°F (20°C) | | Jacket | Overall Diameter: 0.45" (11.3 mm)
Material: Flexible PVC | | DC Resistance | 0.0024 Ω/ft (0.008 Ω/m) at 68°F (20°C) | | Capacitance | At 68°F (20°C)
100 Hz Frequency:
1 to 2: 38.7 pF/ft (127 pF/m)
1 to 3: 31.1 pF/ft (102 pF/m)
1 kHz Frequency:
1 to 2: 33.6 pF/ft (110 pF/m)
1 to 3: 27.1 pF/ft (89 pF/m)
10 kHz Frequency:
1 to 2: 30.8 pF/ft (101 pF/m)
1 to 3: 27.1 pF/ft (89 pF/m)
50 kHz Frequency:
1 to 2: 28.1 pF/ft (92 pF/m)
1 to 3: 22.6 pF/ft (74 pF/m)
100 kHz Frequency:
1 to 2: 27.5 pF/ft (90 pF/m)
1 to 3: 21.7 pF/ft (71 pF/m) | | Inductance | At 1 kHz, 68°F (20°C)
1 to 2: 0.21 µH/ft (0.7 µH/m)
1 to 3: 0.09 µH/ft (0.3 µH/m) | | Voltage Breakdown | Must withstand at 500 VDC /15 sec | | Emigration | Non-Emigrant to ABS resin (jacket material) | | Standard | UL13 CL2 167°F (75°C) | | Temperature | -4 to 158°F (-20 to 70°C) | | Roll | Size: 500' (153 m) | | Weight | 61.73 lb (28 kg) |
