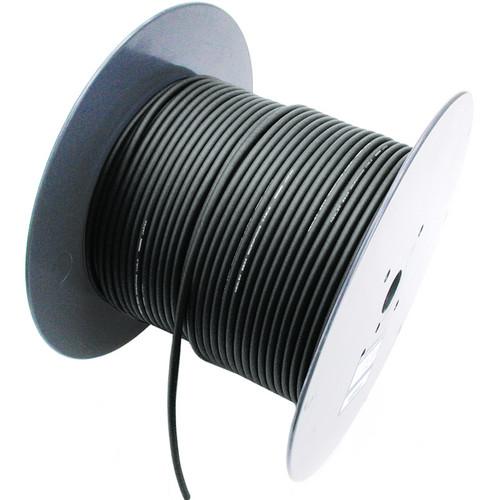

Product description The Mogami W2934 16-Channel Multicore Microphone Snake Cable (328', Black) is designed for the high-level audio performance and features good electrical and mechanical characteristics while remaining compact, flexible, and easy to use. - Individually twisted shielded pairs
- XLPE (Cross Linked Polyethylene) insulation provides good electrical characteristics and will not melt or shrink back during soldering
- Rugged and flexible construction that is easy to handle, even at temperatures down to 4°F (20°C)
- Channel numbers are printed and underlined on each core jacket to ensure correct identification, regardless of which end is stripped
- Outer jackets of each pair are color coded by standard resistor color code, allowing quick identification of conductor pairs
- Inner conductors are also color coded based on the international standard resistor color code
- Each pair is color coded by jacket and conductor color combination
- Each channel has a drain wire and served (spiral) bare copper shield. The drain wire simplifies termination and can be crimped by the same size contact as the inner conductor pair
In the Box Mogami W2934 16-Channel Multicore Microphone Snake Cable (328', Black) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogami W2934 16-Channel Multicore Microphone Snake Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogami W2934 00 C Specs | Conductor | 30/0.08 A (0.15 mm²) #26AWG (30×#40AWG) | | Insulation | Ø 0.039" (1 mm)
XLPE (Cross Linked Polyethylene) | | Drain Wire | 7/0.18 TA (0.18 mm²) #25A WG (7×#33 AWG) | | Shield | Approximately 58/0.10 A served (spiral) shield | | Jacket | Ø 0.110" (2.8 mm)
Flexible PVC | | No. of Channels | 16 | | Overall Diameter | 0.622" (15.8 mm) | | Thickness | Approximately 0.059" (1.5 mm) | | DC Resistance | Inner Pair Conductor: 0.040 Ω/ft (0.13 Ω/m)
Shield: 0.0095 Ω/ft (0.031 Ω/m) | | Capacitance | At 1 kHz, 68°F (20°C) (partial capacitance value)
K0: 40 pF/ft (130 pF/m )
K1: 3.7 pF/ft (12 pF/m ) | | Inductance | 0.18 µH/ft (0.6 µH/m) | | Noise | Electrostatic: Hum Pick-up: 2.5 mV maximum
Electromagnetic: At 10 kHz (inductance of the toroidal core: 595 µH):
0.1 mV maximum | | Microphonics | Method (Stepping on cable):
50 mV Maximum at 50 kΩ/ Load | | Voltage Breakdown | Must withstand at 500 VDC/15 seconds | | Insulation Resistance | At 125 VDC, 20°C: 100,000 MΩ/ × m Minimum | | Tensile Strength | For one pair (26°C, 65% RH): 274 N | | Emigration | Non-emigrant to ABS resin | | Temperature | -4 to 158°F (-20 to 70°C ) | | Standard | UL13 CL2X 60#176;C / UL 20002 AWM 30V 60°C VW-1 | | Weight | 70.54 lb (32 kg) per 328' (100 m) |
