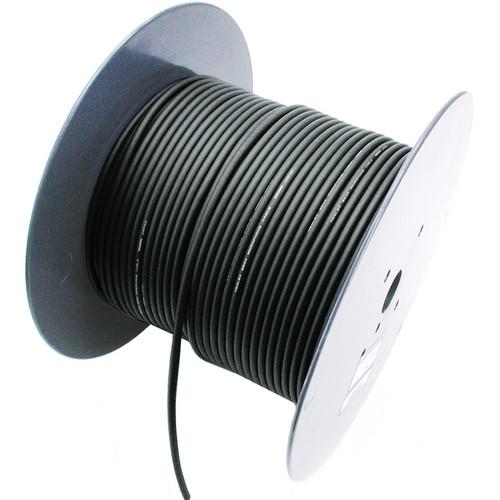

User Manual for Mogami W2938 32-Channel Multicore Microphone Snake Cable Click to enlarge the picture
Contents of the user manual for the Mogami W2938 32-Channel Multicore Microphone Snake
- Product category: Bulk Audio Cable Mogami
- Brand: Mogami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mogami Bulk Audio Cable
|
User manual for the Mogami W2938 32-Channel Multicore Microphone Snake contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mogami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mogami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mogami product will considerably shorten its lifespan!
|
Product description The Mogami W2938 32-Channel Multicore Microphone Snake Cable (1,000', Black) is designed for the high-level audio performance and features good electrical and mechanical characteristics while remaining compact, flexible, and easy to use. - Individually twisted shielded pairs
- XLPE (Cross Linked Polyethylene) insulation provides good electrical characteristics and will not melt or shrink back during soldering
- Rugged and flexible construction that is easy to handle, even at temperatures down to 4°F (20°C)
- Channel numbers are printed and underlined on each core jacket to ensure correct identification, regardless of which end is stripped
- Outer jackets of each pair are color coded by standard resistor color code, allowing quick identification of conductor pairs
- Inner conductors are also color coded based on the international standard resistor color code
- Each pair is color coded by jacket and conductor color combination
- Each channel has a drain wire and served (spiral) bare copper shield. The drain wire simplifies termination and can be crimped by the same size contact as the inner conductor pair
In the Box Mogami W2938 32-Channel Multicore Microphone Snake Cable (1,000', Black) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogami W2938 32-Channel Multicore Microphone Snake Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogami W2938 00 E Specs | Conductor | 30/0.08 A (0.15 mm²) #26AWG (30×#40AWG) | | Insulation | Ø 0.039" (1 mm)
XLPE (Cross Linked Polyethylene) | | Drain Wire | 7/0.18 TA (0.18 mm²) #25A WG (7×#33 AWG) | | Shield | Approximately 58/0.10 A served (spiral) shield | | Jacket | Ø 0.110" (2.8 mm)
Flexible PVC | | No. of Channels | 32 | | Overall Diameter | 0.854" (21.7 mm) | | Thickness | Approximately 0.079" (2.0 mm) | | DC Resistance | Inner Pair Conductor: 0.040 Ω/ft (0.13 Ω/m)
Shield: 0.0095 Ω/ft (0.031 Ω/m) | | Capacitance | At 1 kHz, 68°F (20°C) (partial capacitance value)
K0: 40 pF/ft (130 pF/m )
K1: 3.7 pF/ft (12 pF/m ) | | Inductance | 0.18 µH/ft (0.6 µH/m) | | Noise | Electrostatic: Hum Pick-up: 2.5 mV maximum
Electromagnetic: At 10 kHz (inductance of the toroidal core: 595 µH):
0.1 mV maximum | | Microphonics | Method (Stepping on cable):
50 mV Maximum at 50 kΩ/ Load | | Voltage Breakdown | Must withstand at 500 VDC/15 seconds | | Insulation Resistance | At 125 VDC, 20°C: 100,000 MΩ/ × m Minimum | | Tensile Strength | For one pair (26°C, 65% RH): 274 N | | Emigration | Non-emigrant to ABS resin | | Temperature | -4 to 158°F (-20 to 70°C ) | | Standard | UL13 CL2X 60#176;C / UL 20002 AWM 30V 60°C VW-1 | | Weight | 138.89 lb (63 kg) per 328' (100 m) |
