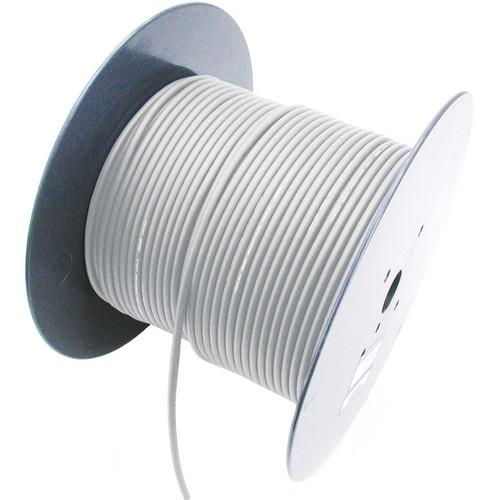

Product description The Mogami W2944 Internal / External Standard Console Wiring Cable (656', White) features copper conductors made of NEGLEX OFC and is suitable for high-quality wiring of mixing consoles, rack panels, and studio equipment. It features XLPE (Cross-Linked Polyethylene), which has excellent electrical characteristics and prevents shrink-back during soldering. Moreover, the served (spiral) shield provides easy cable termination and improved sound quality. - Small size for space saving
- Very flexible and easy to use
- Additional drain wire makes wiring efficient, as it can be crimped by the same size crimp terminal as the conductors
In the Box Mogami W2944 Internal / External Standard Console Wiring Cable (656', White) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogami W2944 Internal External Standard Console Wiring Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogami W2944 09 E Specs | Conductor | Quantity: 2
Details: 30/0.08 OFC
Size: 0.15mm² (#26AWG) | | Insulation | Overall Diameter: 0.039" (1.0 mm)
Material: XLPE (Cross-Insulation Linked Polyethylene)
Resistance: 100,000 MΩ/ x m minimum at 125 VDC, 68°F (20°C) | | Drain Wire | Details: 7/0.18A
Size: 0.18mm² (#25AWG) | | Shield | Served Shield: Approximately 58/0.10 A | | Jacket | Overall Diameter: 0.098" (2.5 mm)
Material: PVC | | DC Resistance | At 68°F (20°C)
Inner Conductor: 0.040 W/ft (0.13 W/m)
Shield: 0.011 W/ft (0.035 W/m) | | Capacitance | At 1 KHz, 68°F (20°C)
K0: 40 pF/ft (130 pF/m)
K1: 3.7 pF/ft (12 pF/m)
Quad-connection | | Inductance | Between Conductors at 1 KHz, 68°F (20°C): 0.18 μH/Ft (0.6 μH/m) | | Noise | Electrostatic: 20 mV maximum
Electromagnetic: 0.1mV maximum | | Breakdown Volts | Must withstand at 500 VDC/15 sec. | | Roll | Length: 656' (200 m)
Weight per 200 m Roll: 5.5 lb (2.5 kg) |
