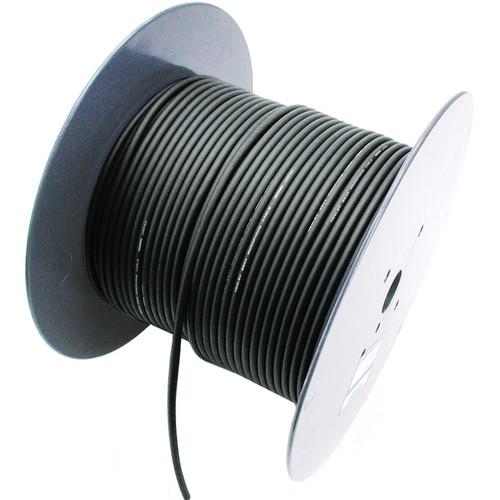

User Manual for Mogami W2965 PUROFLEX II Series Audio Patch Cable Click to enlarge the picture
Contents of the user manual for the Mogami W2965 PUROFLEX II Series Audio
- Product category: Bulk Video Cables Mogami
- Brand: Mogami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mogami Bulk Video Cables
|
User manual for the Mogami W2965 PUROFLEX II Series Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mogami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mogami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mogami product will considerably shorten its lifespan!
|
Product description The Mogami W2965 PUROFLEX II Series Audio Patch Cable (Black) is designed to give good performance; it uses Neglex cable technology. - Low capacitance of 19.8 pF/ft (65 pF/m) Neglex OFC conductor and served (spiral) shield are perfectly matched for high-definition audio
- 75 W coaxial design is impedance matched for video transmission
- Super flexible rubber-like PVC jacket and satin finish
- Low profile mold with improved strain relief design for strength, durability, and longer flex life
- Interchangeable color rings for easy patch cord identification
In the Box Mogami W2965 PUROFLEX II Series Audio Patch Cable (Black) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogami W2965 PUROFLEX II Series Audio Patch Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogami W2965 00 D Specs | Conductor | Quantity: 2 (dual)
Details: 20/0.12 A
Size: 0.226 mm² (#24 AWG) | | Insulation | Overall Diameter: 0.1" (2.6 mm)
Material: XLCPE (Cross-Linked Cellular PE)
Resistance: 100,000 MΩ × m minimum at 125 VDC, 68°F (20°C) | | Shield | Served Shield: Approximately 70/0.12 A | | Jacket | Overall Diameter: 0.19" (4.8 mm)
Material: Flexible PVC | | DC Resistance | At 68°F (20°C)
Inner Conductor: 0.025 Ω/ft (0.083 Ω/m)
Shield Conductor: 0.0076 Ω/ft (0.025 Ω/m) | | Capacitance | At 1 kHz, 68°F (20°C) 17.4 pF/ft (57 pF/m) | | Inductance | 0.12 µH/ft (0.4 µH/m) | | Impedance | 75 W (10 MHz) (characteristic impedance) | | Attenuation | At 10 MHz, 0.0608 dB/m | | Phase | 0.3 rad/m (10 MHz) (constant) | | Noise | Electrostatic Noise: 50 mV maximum | | Microphonics | 40 mV maximum (at 50 kΩ/ load) | | Voltage Breakdown | Must withstand at 500 VDC /15 sec | | Flex Life | 16,500 cycles | | Tensile Strength | 539 N | | Emigration | Non-emigrant to ABS resin | | Standard | UL2552 AWM 30 V 140°F (60°C) VW-1 | | Temperature | -4 to 158°F (-20 to 70°C) | | Roll | Size: 500' (153 m) | | Weight | 19.62 lb (8.9 kg) |
