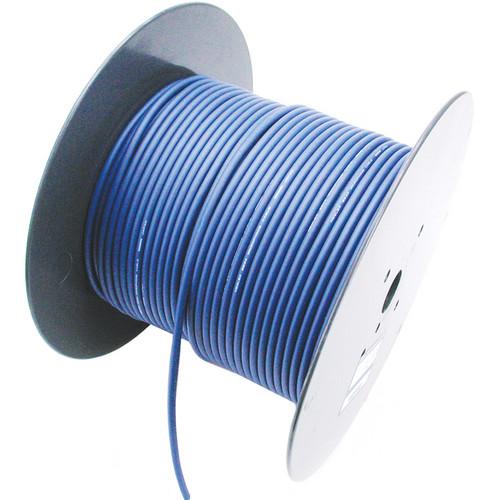

User Manual for Mogami W3080 110 Ω AES EBU Digital Audio Cable Click to enlarge the picture
Contents of the user manual for the Mogami W3080 110 Ω AES EBU
- Product category: Bulk Audio Cable Mogami
- Brand: Mogami
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mogami Bulk Audio Cable
|
User manual for the Mogami W3080 110 Ω AES EBU contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mogami product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mogami user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mogami product will considerably shorten its lifespan!
|
Product description The Mogami W3080 110 Ω AES/EBU Digital Audio Cable (Blue, 656'/100 m) is flexible and features a handy configuration. This AES/EBU digital audio cable has low capacitance characteristics that can result in high-quality analog audio transmission in general, especially in the high frequency range. In the Box Mogami W3080 110 Ω AES/EBU Digital Audio Cable (Blue, 656'/100 m) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogami W3080 110 Ω AES EBU Digital Audio Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogami W3080 06 E Specs | Conductor | Quantity: 2
Details: 7/0.18 A (7×#33 AWG)
Size: 0.178 mm² (#25AWG) | | Insulation | Overall Diameter: 0.5" (1.36 mm)
Material: XLPE
Resistance: 10,000 MΩ × m minimum at 250 VDC, 68°F (20°C) | | Drain Wire | Details: 7/0.18 A(7×#33 AWG)
Size: 0.178 mm² (#25 AWG) | | Shield | Served: approximately 60/0.12 A (approximately 60/#37 AWG) | | Jacket | Overall Diameter: 0.2 ± 0.01" (5 ± 0.3 mm)
Material: Flexible PVC | | DC Resistance | At 68°F (20°C)
Inner Conductor: 0.034 Ω/Ft (0.11 Ω/m)
Shield Conductor: 0.0085 Ω/Ft (0.028 Ω/m) | | Capacitance | At 1 kHz, 68°F (20°C) 14 pF/Ft (46 pF/m) | | Inductance | 0.31 µH/Ft (1 µH/m) | | Impedance | 110 Ω ± 5% (characteristic impedance) | | Attenuation | At 6 MHz, 0.069 dB/mt (0.021 dB/Ft) | | Phase | 0.2 rad/m (6 MHz) (constant) | | Noise | Electrostatic Noise: 50 mV maximum
Electromagnetic Noise: 2 mV maximum | | Microphonics | 40 mV maximum | | Voltage Breakdown | Must withstand at 500 VDC /15 sec, 68°F (20°C) | | Flex Life | 10,000 cycles | | Tensile Strength | 343 N | | Emigration | Non-emigrant to ABS | | Standard | AES3-100X (ANSI S. 4. 40-199-X) EBU Rech, 3250-E CEI / IEC 958 / CCIR Rec. 647 | | Temperature | -4 to 140°F (-20 to 60°C) | | Roll | Size: 656' (200 m) | | Weight | Per 328' (100 m): 7.27 lb (3.3 kg) |
