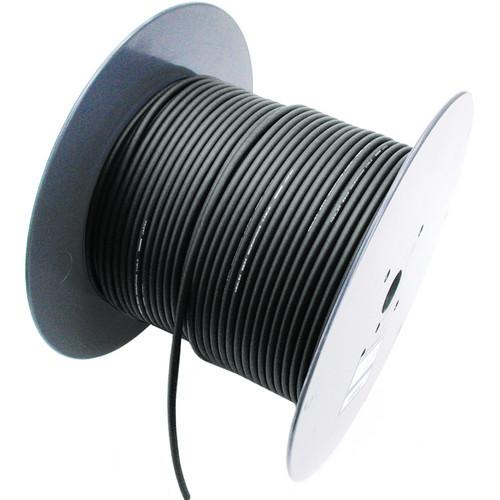

Product description The Mogami W3162 AES/EBU Digital Audio Multicore Cable (500'/Black) is flexible and its compact design makes this multicore 110 Ω AES/EBU digital audio snake cable easy for wiring, installation, and handling. Because of employed cellular PP (polypropylene) insulation material, regardless of its compact overall diameter, a larger conductor size is used, which results in lower attenuation. - Easy cable core identification system, such as numbered cable core
- Easy wiring assisted by the same conductor size drain wire
- Flexible and good low temperature characteristic
In the Box Mogami W3162 AES/EBU Digital Audio Multicore Cable (500'/Black) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogami W3162 AES EBU Digital Audio Multicore Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogami W3162 00 D Specs | Length | 500' (152.4 m) | | No. of Cores | 8 | | Overall Diameter | 0.543" (13.8 mm) | | Nominal Jacket Thickness | Approximately 0.055" (1.4 mm) | | Conductor | 7/0.20 A (0.22 mm²) #24 AWG (7× #32 AWG) | | Insulation | Ø0.053" (Ø1.35 mm) CPP (Cellular polypropylene) | | Drain Wire | 7/0.20 A | | Shield | Approximately 79/0.10 A served (spiral) shield | | Jacket | Ø0.126" (Ø3.2 mm) flexible PVC | | DC Resistance | At 20°C: Inner Pair Conductor: 0.0247 Ω/ft (0.081 Ω/m)
Shield: 0.0073 Ω/ft (0.024 Ω/m) | | Capacitance | At 1 kHz, 68°F (20°C) (partial capacitance value): 14 pF/ft (46 pF/m) | | Inductance | 0.24 µH/ft (0.8 µH/m) | | Impedance | 110 Ω ±10% | | Attenuation | 0.020 dB/ft (0.065 dB/m) | | Phase | 0.17 rad/m | | Noise | Electrostatic: 5.0 mV maximum
Electromagnetic: At 10 kHz: 2.0 mV maximum | | Microphonics | 60 mV | | Voltage Breakdown | Must withstand at 500 VDC / 15 seconds | | Insulation Resistance | At 125 VDC, 20°C: 100,000 MΩ / × m Minimum | | Tensile Strength | 303 N of one pair (26°C, 65% RH) | | Emigration | Non-emigrant to ABS resin | | Temperature | -4 to 158°F (-20 to 70°C ) | | Standard | AES3-100X(ANSI S.4.40-199X)
EBU Rech. 3250-E
CEI/IEC 958/CCIR Rec. 647
UL13 CL2X 60°C / UL20002 AWM 30V 60°C VW-1 | | Weight | 50.70 lb (23 kg) per 328' (100 m) |
