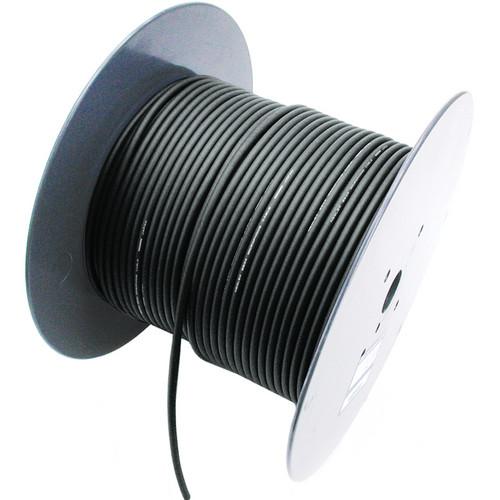

Product description The Mogami W3172 High-Definition Tube Microphone Cable (Black, 328’/100 m) is designed to deliver good sound quality. This cable is applicable to most tube microphones. - Orange / white insulation for microphone output
- Red / purple insulation for bias circuit
- Green / blue insulation for heater circuit
In the Box Mogami W3172 High-Definition Tube Microphone Cable (Black, 328'/100 m) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogami W3172 High-Definition Tube Microphone Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogami W3172 00 C Specs | Conductor | Quantity: 6
MIC. Output:
Details: 2 × (30/0.08 OFC)
Size: 0.15 mm² (26 AWG)
Bias:
Details: 2 × (75/0.04 Cu-Sn)
Size: 0.094 mm² (#28AWG)
Heater Circuit:
Details: 2 × (80/0.08 A)
Size: 0.40 mm² (#22AWG) | | Insulation | MIC. Output:
Overall Diameter: 0.04" (1 mm)
Material: XLPE
Bias:
Overall Diameter: 0.04" (1 mm)
Material: XLPE
HeaterCircuit:
Overall Diameter: 0.06" (1.6 mm)
Material: PVC
Resistance: 100,000 MΩ × m minimum at 125 VDC, 68°F (20°C) | | Shield | Double Served Shield: Approximately 112/0.10 A (approximately 133/0.10 A) | | Binder Type | Thickness: 0.00098" (0.025 mm)
Material: Paper tape | | Jacket | Overall Diameter: 0.26 (6.5 mm)
Material: Flexible PVC | | DC Resistance | At 68°F (20°C)
Inner Conductor:
Mic Signal: 0.040 Ω/ft (0.13 Ω/m)
Bias Circuit: 0.070 Ω/ft (0.23 Ω/m)
Heater Circuit: 0.014 Ω/ft (0.046 Ω/m)
Shield Conductor: 0.0034 Ω/ft (0.011 Ω/m) | | Capacitance | At 1 kHz, 68°F (20°C)
Shield-Conductor:
Mic Signal: 70pF/ft (230 pF/m)
Bias Circuit: 30 pF/ft (100 pF/m)
Heater Circuit: 28 pF/ft (93 pF/m)
Between Neighbor Conductors: Twisted Pair
Mic Signal: 17 pF/ft (56 pF/m)
Bias Circuit: 14 pF/ft (46 pF/m)
Heater Circuit: 42 pF/ft (137 pF/m) | | Inductance | Twisted Pair 0.12 µH/ft (0.4 µH/m) | | Noise | Twisted Pair
Electrostatic: 1 mV maximum
Electromagnetic: 0.01 mV maximum | | Microphonics | Twisted pair 10 mV maximum | | Voltage Breakdown | Must withstand at 500 VDC /15 sec | | Flex Life | 13,000 cycles | | Tensile Strength | 588 N | | Emigration | Non-emigrant to ABS resin | | Temperature | -4 to 158°F (-20 to 70°C) | | Roll | Size: 500' (100 m) | | Weight | 13.89 lb (6.3 kg) |
