User Manual for Mogan Elite ICE Omni Earset Microphone for Audio-Technica Transmitters Click to enlarge the picture
Contents of the user manual for the Mogan Elite ICE Omni Earset Microphone
- Product category: Microphones for Wireless Mogan
- Brand: Mogan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mogan Microphones for Wireless
|
User manual for the Mogan Elite ICE Omni Earset Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mogan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mogan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mogan product will considerably shorten its lifespan!
|

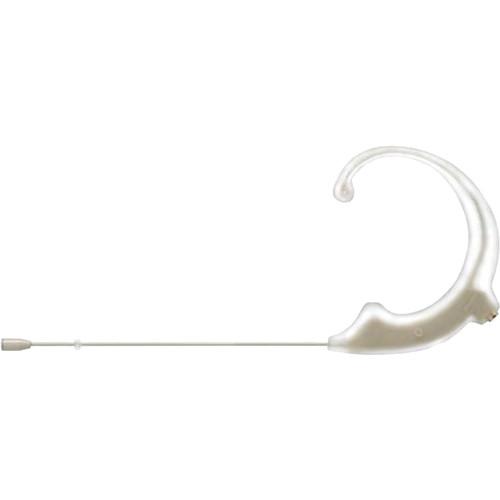

Product description The beige Elite ICE Omni Earset Microphone for Audio-Technica Transmitters from Mogan offers pristine sound, low visibility, and enhanced comfort to discerning presenters or performers for applications such as broadcasting, stage, lectures, houses of worship, and more. The Elite ICE features a moisture-resistant omnidirectional capsule which delivers a rich vocal sound with full-frequency audio response (20 Hz to 20 kHz) and high gain before feedback. The transparent earpiece features proprietary Invisi-Clear Earpiece (ICE) technology which gives this earset an uncommonly discreet visual appearance by blending with the user's skin tone. For comfort, the thin, strong boom can be positioned on the user's left or right side, and adjusted to the contour of any face. The earset can be used with a choice of interchangeable cables (available separately) which let you connect it to most popular wireless transmitters, including models from Shure, AKG, Sennheiser, and Audio-Technica. The Elite ICE comes with five foam windscreens and an impact-resistant aluminum case. - Kevlar-reinforced, interchangeable cable with hardwired connector for Audio-Technica transmitters
- Transparent earpiece with Invisi-Clear Earpiece (ICE) technology
- Discreet, 2.5mm omnidirectional condenser microphone element
- Full-frequency, moisture-resistant capsule
- Fully adjustable boom and earpiece – can be positioned on the user's left or right side and adjusted to the contours of any face
- Cable features a hardwired Hirose 4-pin connector for compatibility with Audio-Technica wireless transmitters
- Includes five foam windscreens and aluminum case
- Can be used with a choice of interchangeable cables (available separately) which allow you to connect the earset to most popular wireless transmitters, including models from Shure, AKG, Sennheiser, and Audio-Technica
UPC: 728736055001 In the Box Mogan Elite ICE Omni Earset Microphone for Audio-Technica Transmitters (Beige) Detachable Cable with Connector for Audio-Technica Transmitters 5 x Foam Windscreens Single-Cable Clip Aluminum Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogan Elite ICE Omni Earset Microphone for Audio-Technica Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogan EIO-BG-AT Specs | | | Sound Field | Mono | | Operating Principle | Pressure Operated | | Transducer | Electret Condenser | | Diaphragm | 0.10" / 2.5 mm | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 66 dB | | Equivalent Noise Level | 28 dB A-Weighted | | Maximum SPL | 140 dB SPL | | Impedance | 4.5 kOhms ± 30% | | Sensitivity | -45 dBV/Pa | | | | Output Connector | 4-Pin Hirose | | Cable Length | 5.91' / 1.8 m | | Operating Voltage | 0.9 to 5 V | | Length | 5.31" / 135 mm | | Weight | 0.46 oz / 13 g | | | | Package Weight | 0.66 lb | | Box Dimensions (LxWxH) | 7.65 x 4.55 x 2.1" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
