User Manual for Mogan Elite Omni Earset Microphone with Connector for AKG Transmitters Click to enlarge the picture
Contents of the user manual for the Mogan Elite Omni Earset Microphone with
- Product category: Microphones for Wireless Mogan
- Brand: Mogan
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mogan Microphones for Wireless
|
User manual for the Mogan Elite Omni Earset Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mogan product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mogan user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mogan product will considerably shorten its lifespan!
|

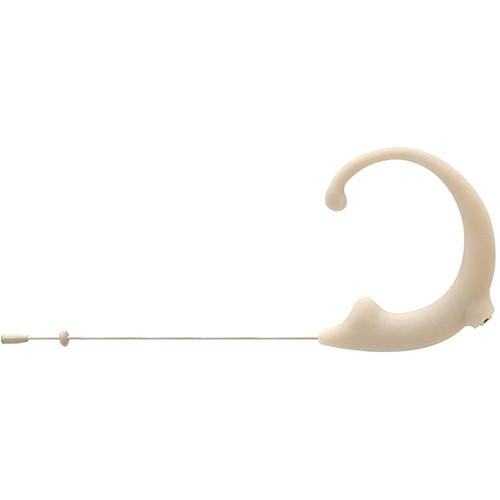

Product description The beige Elite Omni Earset Microphone from Mogan delivers full-frequency vocal reproduction for broadcast, theater, and presentation. Featuring a discrete 2.5mm omnidirectional condenser element with a high gain before feedback, it captures every vocal nuance with detailing. A fully adjustable boom and earpiece enable precise positioning on the left or right ear for maximum stability and comfort, making it suitable for extended use.The microphone’s moisture-resistant capsule and hypoallergenic earpiece may be sanitized if the microphone is shared. The Elite Series Earset microphone is suitable for both spoken word and vocal performance.Mogan’s interchangeable cable system enables you to connect a single microphone to multiple wireless transmitters. The microphone includes a cable with a hardwired connector for AKG wireless transmitters. Note: Cables for other types of transmitters are available for special order. UPC: 728736054073 In the Box Mogan Elite Omni Earset Microphone with Connector for AKG Transmitters (Beige) 4' Reinforced Cable with Connector for AKG Transmitters 5 x Foam Windscreen Single-Cable Clip Aluminum Case Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Mogan Elite Omni Earset Microphone with Connector for AKG Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMogan EXO-BG-AK Specs | Capsule | Back-electret condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | -45 ±3 dB re 1 V/Pa | | Equivalent Noise Level | 28 dB (A-weighted) | | Signal-to-Noise Ratio | 66 dB | | Output Impedance | 4.5 kΩ ±30% | | Maximum SPL | 140 dB | | Current | Operating: <100 mA | | Power Requirement | 0.9 VDC (Optimum), 5 VDC (Maximum) | | Overall Length | 5.3" (135.0 mm) | | Boom Length | 3.5" (90.0 mm) | | Capsule Diameter | 0.1" (2.5 mm) | | Connector Type | Compact-screw (in earset) | | Cable Diameter | 0.05" (1.40 mm) | | Cable Length | 4.0' (1.2 m) | | Weight | 0.45 oz (13.00 g) | | | | Package Weight | 0.46 lb | | Box Dimensions (LxWxH) | 9.0 x 5.5 x 1.75" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
