User Manual for Mojave Audio MA-301fet Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Mojave Audio MA-301fet Condenser Microphone
- Product category: Large Diaphragm Condenser Mojave Audio
- Brand: Mojave Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mojave Audio Large Diaphragm Condenser
 |
User manual for the Mojave Audio MA-301fet Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mojave Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mojave Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mojave Audio product will considerably shorten its lifespan!
|
Product description - MA-301fet Cardioid (hi-pass filter)

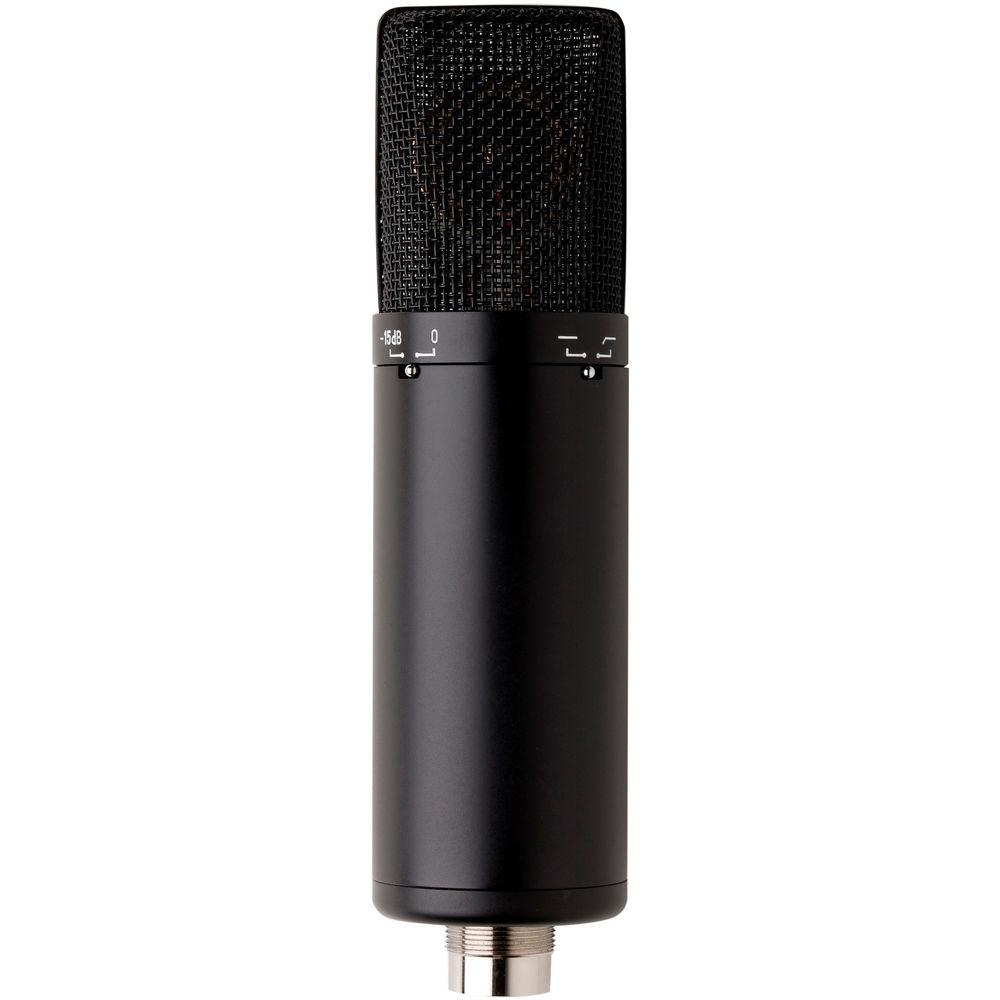

The MA-301fet Condenser Microphone from Mojave Audio features a versatile, multi-pattern design, for a wide range of professional and project recording applications. It can be used with vocals, voice-overs, broadcasts, kick drums, bass guitar amps, electric guitars, piano, drum overheads, and drum rooms. The microphone features omnidirectional, cardioid, and figure-of-eight polar patterns, all accessible from a 3-position switch on the front. There is a solid-state FET output stage for delivering noise-free, pristine audio quality. A -15 dB pad switch maximizes headroom and minimizes noise and distortion. Additionally, the bass roll-off filter eliminates hum, proximity effect, and other low-end noise. The MA-301fet includes a shockmount and a protective case. - Multi-pattern: cardioid, omnidirectional, and figure-of-eight
- Hand-selected 3-micron 1.0" capsule
- Custom designed low-noise resistors

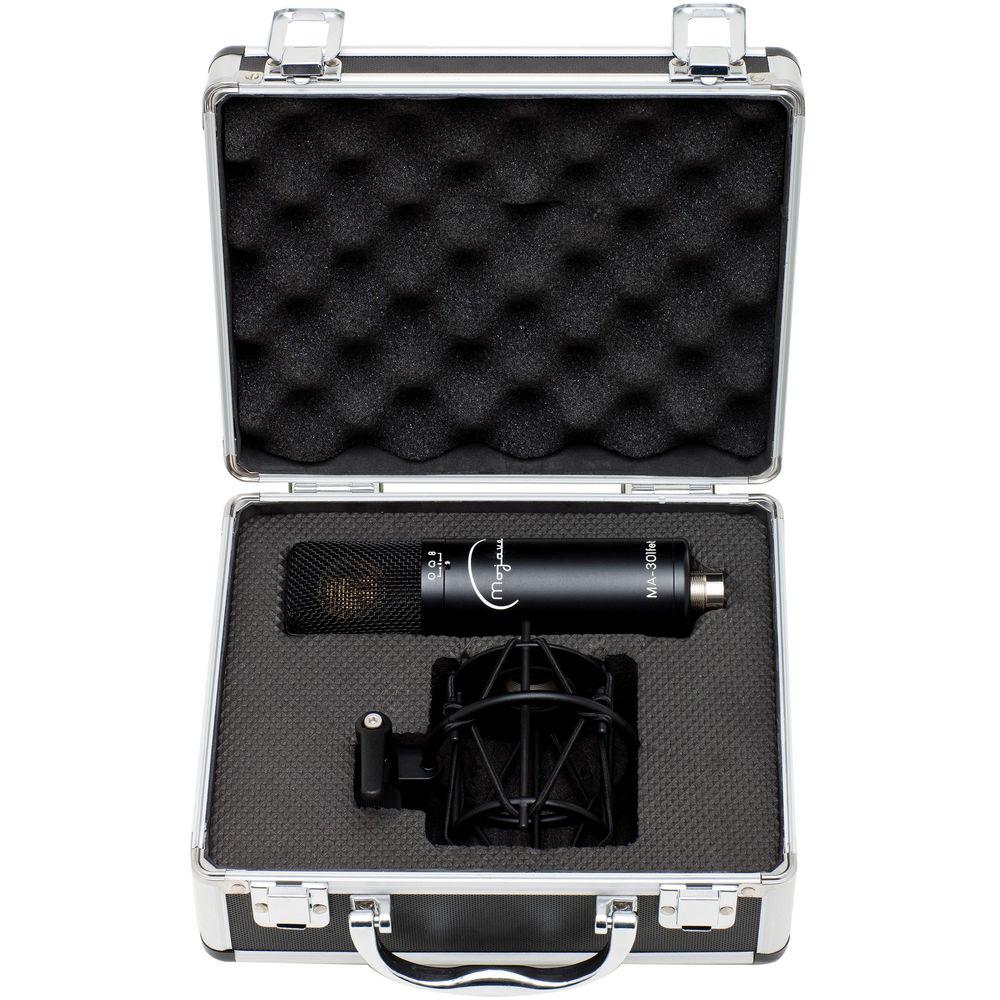

UPC: 899060002082 In the Box Mojave Audio MA-301fet Condenser Microphone Protective Case Shockmount Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mojave Audio MA-301fet Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMojave Audio MA-301fet Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 1.0" / 25.40 mm | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 14 dB A-Weighted | | Maximum SPL | 120 dB SPL
135 dB SPL | | Pad | -15 dB | | THD | < 1% | | Impedance | 550 Ohms | | Sensitivity | -40.5 dB | | Low-Cut Filter | 6 dB/Octave @ 100 Hz | | | | Operating Current Consumption | 1.2 µA | | Operating Voltage | 48 V | | Length | 7.64" / 194.0 mm | | Diameter | 2.01" / 51.0 mm | | Weight | 1.0 lb / 454 g | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 10.7 x 10.0 x 5.1" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
