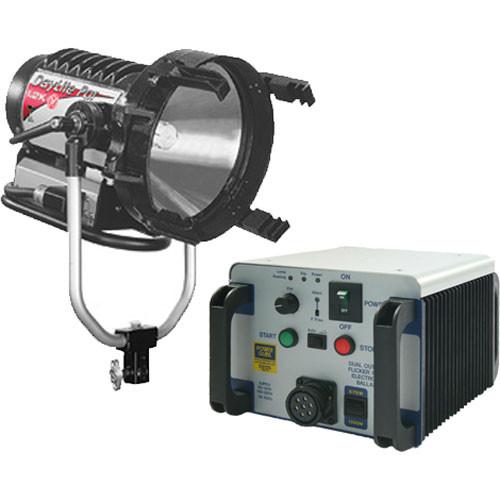

User Manual for Mole-Richardson 1.2K HMI PAR Pro Electronic Ballast Kit Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 1.2K HMI PAR Pro Electronic
- Product category: HMI & Plasma Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson HMI & Plasma Lights
|
User manual for the Mole-Richardson 1.2K HMI PAR Pro Electronic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description This is a Mole Richardson 1.2K HMI Pro Kit with dimmable electronic ballast, 50' cable, barndoors, 24 x 32" Chimera softbox, 5-lens set, scrims, and a gaffer pack. The 1200-Watt DayLite PAR is designed for motion picture, television, event, and ENG/EFP professionals worldwide. The solid cast aluminum construction features improved ventilation and cooling and eliminates unwanted spill light. A Brytal aluminum parabolic reflector provides 96 square inches of reflective surface. Contained in a low-profile trough, the electronics have been isolated from the main housing and feature a swing-out trap door for easy access to the igniter and safety switch. Similar to the Type 6641 2.5/4K DayLite Par, the fixture has visual and tactile focal indicators to determine lamp position, and when used with the optional interchangeable lenses, the field of light can be fine-tuned for optimum beam control. Other features include: a trough skid, a pass through yoke, a locking, hinged front door, and a pig-tail style electrical input. When fitted with a 1.2K HMI bulb and no lens, this fixture will throw a beam of light of 4000 footcandles, 2.1' in diameter from a distance of 20'. Mounting one of the five included lenses will alter the beam spread and diminish the light output. Fixture - Equipped with a safety screen.
- Spring-loaded fourth accessory clip, and variable accessory clip positions located at either 90 or 45°.
-
- Rear-mounted On and Off push-button switches allow hot-restrike.
- A safety switch blocks power to bulb until front housing door is closed.
- Compatible with all existing 10.25" accessories.
Ballast - Dimmable to 50% of full power.
- Multi-voltage 120-220 VAC, auto-sensing.
-
- Microprocessor control, constant power output.
- Instant start, ZVS technology.
- Circuit breaker.
Accessories -
- Five lenses: Narrow, Medium, Wide, Extra Wide, Frosted Fresnel each helps to shape the light spread.
- Barndoor set shapes the light.
- Scrims alter the intensity of the light.
- 50' head-to-ballast cable provides easy control far from the fixture.
- Gaffer kit provides HMI bulb, assorted gels, clothespins, gloves, AC line tap, and a ditty bag
In the Box Mole-Richardson 1.2K HMI PAR Pro Electronic Ballast Kit (120-240 VAC) Molepar 1200 Watt HMI PAR Ballast Cable for 1.2K HMI Fresnel - 50' Electronic Ballast for HMI Par 575/1200W X-Wide Lens Assembly for HMI 1.2K Par Narrow Lens Assembly for HMI 1.2K Par Medium Lens Assembly for HMI 1.2K Par Wide Lens Assembly for HMI 1.2K Par Fresnel Lens Assembly for 1.2K HMI Four Leaf Barndoor Set for HMI PAR 1.2K 4 x Lens Box for 6631 HMI Par Lenses Full Single Scrim for Mole PAR Fixtures (10 1/8") Half Single Scrim Stainless Steel for Mole PAR Fixtures (10 1/8") uyvazucqwtsesvwsttbweburzdddzcvdt 2 x Full Double Scrim for Mole Par Lights (10 1/8") Daylite Plus Softbox - Small uyvazucqwtsesvwsttbweburzdddzcvdt Speed Ring for Quartz & Daylite Banks - Circular 10-1/8" GafferPack for 1200 HMI PAR Kit Diffuser Frame for Mole Junior uyvazucqwtsesvwsttbweburzdddzcvdt Scrim Bag for 8" Junior Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 1.2K HMI PAR Pro Electronic Ballast Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Daylite Par Specs | | | Rating | 1200 W max | | Socket (Lampholder) | Type 63295, bi-post ceramic base with brass inserts | | Lens (Condenser) | 4 x accessory lenses included | | Mounting | 5/8" standard stud | | Weight | 26 lb / 11.8 kg, with cable | | Dimensions | 20.25 x 7.1 x 11" / 51.4 x 18 x 28 cm | | | | Rating | 575-1200 W, 110-220 VAC
17.6 A at 110 VAC
9 A at 220 VAC | | Cable | 50' / 15.2 m, included | | Weight | 15.4 lb / 7 kg, with cable | | Dimensions | 8.7 x 6.8 x 11.1" / 22 x 17.2 x 28.3 cm | | Kit Weight | 116 lb / 53 kg |
