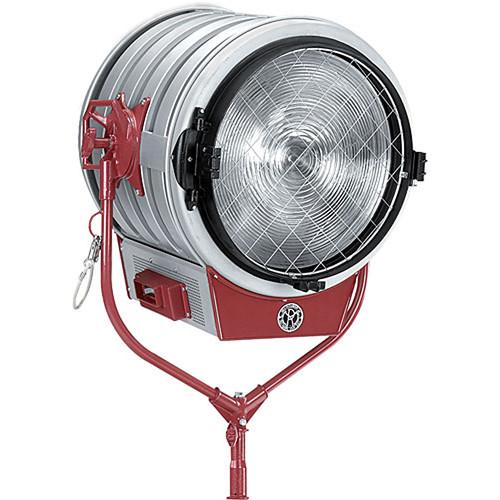

User Manual for Mole-Richardson 10 12K Molequartz 20" Tener Solarspot Fresnel Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 10 12K Molequartz 20" Tener
- Product category: Tungsten Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson Tungsten Lights
|
User manual for the Mole-Richardson 10 12K Molequartz 20" Tener contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description The Mole Richardson 10,000/12,000 Watt Molequartz 20" Tener Solarspot Fresnel fixture has been redesigned to produce greater output and beam spread than its earlier version. It features circular channel construction for added strength and more efficient airflow, resulting in cooler operation.The Tener is used in set lighting as a key or back light or as a kicker. Using a 12,000 Watt WSE lamp at 20', this fixture will throw a 610 footcandle beam of light measuring 20.3' in diameter at full flood. At minimum spot it throws a beam 4.1 feet in diameter with an intensity of 5300 footcandles at the same distance. - Redesigned for Performance
- This redesigned Tener produces 60% more spread and 42% more light output than the earlier model.
- Multi Use
- Traditionally used as a key, back, or kicker light.
- Power Sources
- 120 or 240-volt use, AC or DC
In the Box Mole-Richardson 10/12K Molequartz 20" Tener Solarspot Fresnel Safety Screen 3' #4/1 Entertainment Cable, MC258G Plug Limited 1-Year Warranty Note: Bulb is not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 10 12K Molequartz 20" Tener Solarspot Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Tener Solarspot Specs | Rating | 10,000 or 12,000 W | | Socket (Lampholder) | Mogul bi-post, spring loaded contacts | | Lens (Condenser) | 20" Fresnel (17-45 degree field angle) | | Reflector (Mirror) | Alzak aluminum | | Mounting | 1 1/8" removable steel yoke pin | | Yoke | Tubular steel and brass castings | | Cable | 3' / 1 m, #4/1 Entertainment cable, MC258G plug | | Focusing | Rear-mounted rotating crank | | Weight | 96.75 lb / 43.9 kg | | Dimensions | 28.8 x 29.25 x 25.75" / 73.2 x 74.3 x 65.4 cm | | | | Box Dimensions (LxWxH) | 39.0 x 36.0 x 32.0" |
