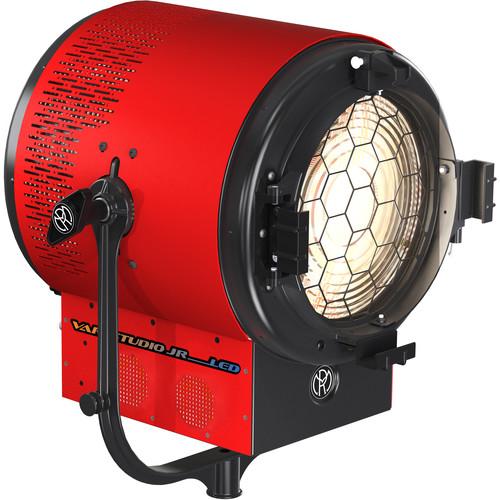

User Manual for Mole-Richardson 10" Vari-Studio Junior LED Fresnel Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 10" Vari-Studio Junior LED Fresnel
- Product category: LED Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson LED Lights
|
User manual for the Mole-Richardson 10" Vari-Studio Junior LED Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description Lighting manufacturing icon Mole-Richardson continues to add to their LED arsenal with the introduction of the 10" Vari-Studio Junior LED Fresnel. The dimmable fixture has a wide 20 to 55-degree adjustable beam spread via its 10" borosilicate lens and an expansive 2700 to 6500K variable color range (enough to meet any compatibility challenge), and +/- green control, while maintaining a CRI of 92, an indicator of accurate color rendering. Settings are made on the unit's 2.8" LCD touchscreen and a Twist & Push selector. Temperature-activated, forced air cooling extends the 480W LED array's lamp life into the thousands of hours. Constructed of sturdy aluminum with a cast aluminum yoke, the Vari-Studio Junior LED Fresnel has a 1 1/8" pin for mounting on stands that have a Junior receiver. The Vari-Studio is ready for worldwide use thanks to its 90-250 VAC power supply, but you can also run the light on 30V block batteries when mains power is unavailable. In the Box Mole-Richardson 10" Vari-Studio Junior LED Fresnel Detachable 20' Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 10" Vari-Studio Junior LED Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Vari-Studio Junior Specs | | | Beam Angle | 20 to 55° | | Color Temperature | 2700 to 6500K | | Color Accuracy Standard | CRI 95 | | Cooling System | Fan | | Dimming | Yes | | Display | LCD Touchscreen | | Housing Material | Aluminum | | Fixture Dimensions | Fresnel Lens: 17.7 x 8.3 x 21.4" / 45.0 x 21.1 x 54.4 cm (Including Yoke) | | Fixture Weight | 24 lb / 10.89 kg (Including Yoke) | | | | Battery Plate | None | | Power Input Connector | powerCON | | DMX Connector | None | | Power Output Connector | powerCON | | | | Lens Diameter | 10" / 254 mm | | Lens Material | Borosilicate Glass | | Lens Type | Fresnel | | | | Yoke Mount | None | | Fixture Mount | 1-1/8" Stud | | Accessory Mount | None | | | | Yoke Material | Aluminum | | Yoke Type | Yoke/Bracket | | | | AC Input Power | 90 to 250 VAC, 50 / 60 Hz | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 480 W | | Fuse | 5 A / Slow-Blow | | Power Pass-Thru | None | | | | Cable Length | 20' / 6.1 m | | Inline Switch | Yes | | Cable Type | powerCON to Unspecified | | | | Power Supply Output | 30 VDC, 5 A | | Power Supply Power Connector | powerCON Input | | | | Certifications | RoHS, as per Manufacturer | | IP Rating | IP30 |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
