Product description Five LED Fresnel Lights from Mole Richardson Read More xxqbacyaerwyvu With a daylight color temperature output slightly less powerful than a 575W HMI, yet only drawing 100 watts, the Mole Richardson 100 Watt 5" LED Fresnel is a versatile fixture useful on location or in the studio. It features a borosilicate glass Fresnel lens, safety wire, and a hybrid passive/fan-forced air cooling design to handle any heat from the LEDs. With a CRI rating of 95 the light can be dimmed from 100% brightness down to 0% without flicker and with only minimal color shift.

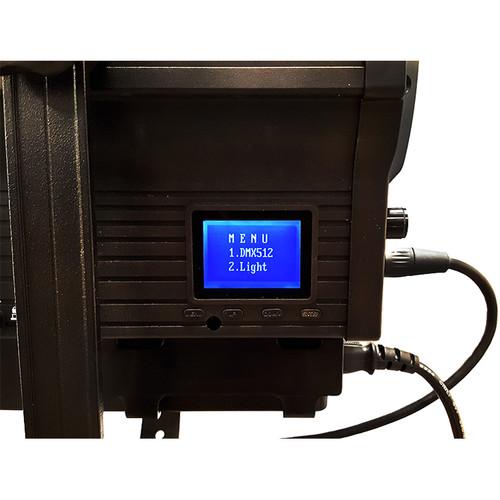

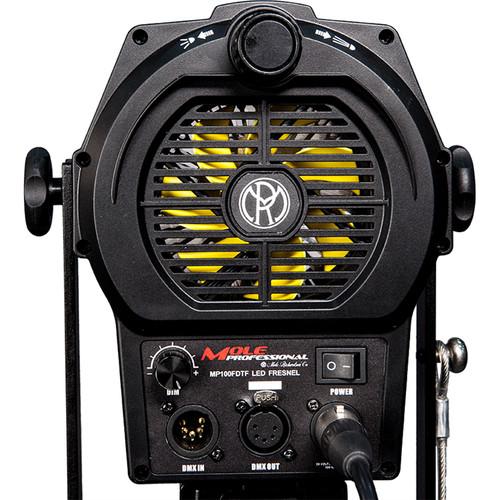

The fixture allows local (manual) dimming as well as DMX 512 control for remote dimming (DMX panel not included). Manual focusing of the Fresnel is via the rotating knob on the back of the unit. A built-in LED info display provides information on the lights brightness and the DMX channel selected. The lightweight aluminum and composite (plastic) chassis is finished in matte-black to reduce reflections. Included with the fixture is a set of barndoors, 10' DMX cable, CTO correction filter, power cable, and power supply. - Local dimming control allows you to adjust the brightness of the fixture from the fixture itself, without introducing flicker at standard frame rates. DMX 512 control is also supported and the fixture includes a 10' DMX cable, although it does not include a DMX control panel.

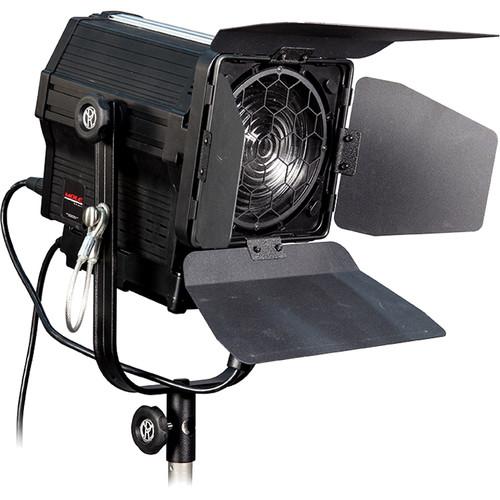

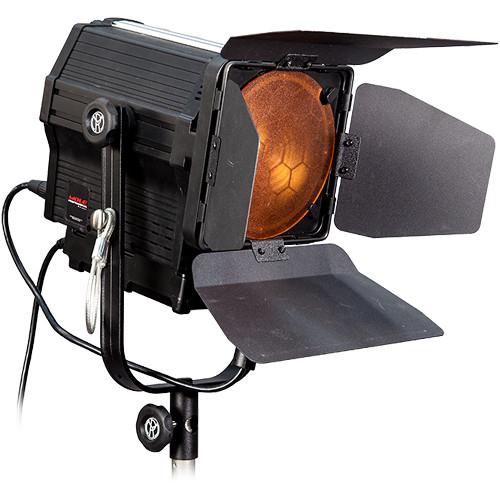

- The fixture includes 4-leaf barndoors and CTO filter
In the Box Mole-Richardson 100 Watt 5" LED Fresnel (Daylight) 4-Leaf Barndoors CTO Filter 10' DMX Cable 14' Power Cable Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 100 Watt 5" LED Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Mole Pro Specs | | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Display | None | | Fixture Dimensions | 16.0 x 9.0 x 10.0" / 40.6 x 22.9 x 25.4 cm | | Fixture Weight | 6 lb / 2.7 kg | | | | Lens Diameter | 5" / 12.7 cm | | Lens Material | Borosilicate Glass | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 24 VDC | | Power Source | AC Adapter | | Max Power Consumption | 100 W | | | | Power Supply Output | 24 VDC | | | | Certifications | RoHS, UL, as per Manufacturer | | IP Rating | IP30 | | | | Package Weight | 11.7 lb | | Box Dimensions (LxWxH) | 15.0 x 10.3 x 10.3" |
