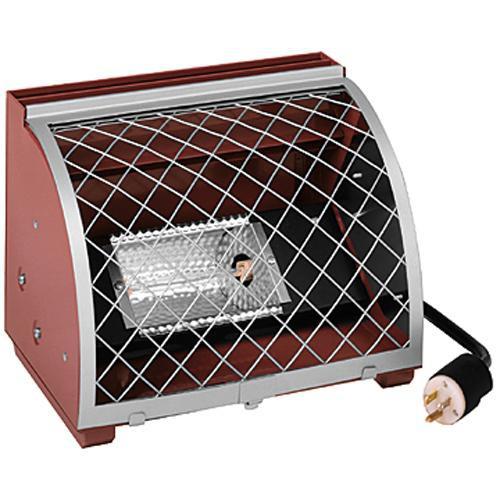

User Manual for Mole-Richardson 1000 Watt Molequartz One-Light Groundrow Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 1000 Watt Molequartz One-Light Groundrow
- Product category: Stage & Studio Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson Stage & Studio
|
User manual for the Mole-Richardson 1000 Watt Molequartz One-Light Groundrow contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description This is the 1000 Watt Molequartz One-Light Groundrow. The fixture, used in multiple units, is aptly named since it hugs the ground, presenting a low profile which is invaluable in lighting backgrounds or cycloramas. A mask is usually employed to hide the lights from view. The easily removed safety screen makes way for gel or diffusion filters. The Groundrow uses lamps from 300-1000 watts in 120V, as well as 800 watt 240V lamps with a color temperature of 3200K. - Low-profile Cyc Light
- The Groundrow is ideal used in groups to light along the base line of a cyclorama where it's usually hidden by a mask.
- Photometrics
- Using an FCM 1,000 watt,120 volt, 3200°K quartz lamp:
At 6' (4.88 m) from lamp to cyc the Groundrow casts a beam 16' (4.88 m) in height which diminishes from 120 fc at the base to 45 fc at the top. In the Box Mole-Richardson 1000 Watt Molequartz One-Light Groundrow 1 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 1000 Watt Molequartz One-Light Groundrow in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Groundrow Specs | Rating | 1000 Watts Maximum, 120/240V, AC or DC
Lamps available from 300-1000 Watts | | Socket (Lampholder) | Compressible single contact | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | U-Shaped Scoop, Aluminum, Molebrite Alzak surface | | Mounting | None, Sits on Floor | | Yoke | Not Applicable | | Cable | 36 inches, Type SO, 3 conductor
#18 AWG with U-ground houseplug | | Focusing | None | | Weight | 7.5 lbs (3.4 kg) | | Dimensions | Head: 8.5 x 12 x 8.8" (21.6 x 30.5 x 22.3 cm)
Filter Frame: 10.8 x 11.8" (27.4 x 30 cm) |
