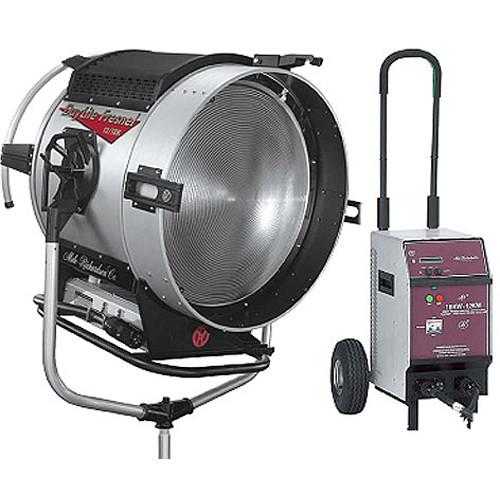

Product description The 12/18K HMI DayLite Fresnel Light Kit consists of an 12-18K HMI Fresnel, cable, electronic ballast, scrims with scrim bag, and a diffuser frame. The 12/18K HMI DayLite Fresnel has been designed for motion picture, television, and event professionals worldwide. Reminiscent of the 225 Litewate Brute Arc, this fixture features improved ventilation and cooling using engineered channels to direct convective air-flow through the fixture and sockets. The solid, double-walled sheet metal and cast aluminum construction eliminates spill light, while the 24" borosilicate Fresnel lens combines with a 16" Brytal aluminum reflector to provide unparalleled output and a smooth field from spot to flood. The low-profile trough isolates the electronics from the main housing and features a swing-out trap door for easy maintenance. This fixture will turn night into day with a beam of 25,781 footcandles, 3' in diameter from a distance of 20' at full spot. It will throw 1953 footcandles, 19.7' in diameter from the same distance at full flood. Add a heavy duty stand of your choice and an HMI bulb to complete the kit. - Hot restrike power switch on fixture.
- Rear grab-bar, notched accessory clips and a trough skid; a pass-through yoke; a locking, tilt-out rear door and a pig-tail style electrical input.
- Stainless steel safety screen, spring loaded fourth accessory clip, and variable accessory clip positions located at either 90 or 45°.
- This fixture is compatible with all existing 29" diameter accessories.
In the Box Mole-Richardson 12-18K HMI Fresnel Kit (208-240 VAC) 12-18kW HMI Fresnel Light (6601) 12-18kW Electronic Ballast (66065) 50' Head Extension Cable (680192) Set of 29" Scrims, 1 Each of:
Full, Half Double (450763D, 450762D)
Full, Half Single (450763S, 450762S) Scrim Bag (G140) Diffusion Frame (34724) Limited 1-Year Warranty Note: HMI bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 12-18K HMI Fresnel Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Daylite Fresnel Specs | Rating | Fixture and Ballast: 12,000-18,000 W, 208-240 VAC at 50/60Hz | | Socket (Lampholder) | Porcelain, friction type brass bi-post | | Lens (Condenser) | 24.75" / 62.9 cm borosilicate Fresnel | | Mounting | 1 1/8" Junior stand mount | | Weight | Fixture: 188 lb / 85.4 kg (with cable)
Ballast: 150 lb / 68.1 kg (with cable) | | Dimensions | Fixture: 47.25 x 33.5 x 33.5 / 120 x 85 x 85 cm (with yoke)
Ballast: 27 x 20.5 x 30" / 68.5 x 52 x 76.2 cm (handle down) | | Kit Weight | ~360 lb / 163.6 kg |
