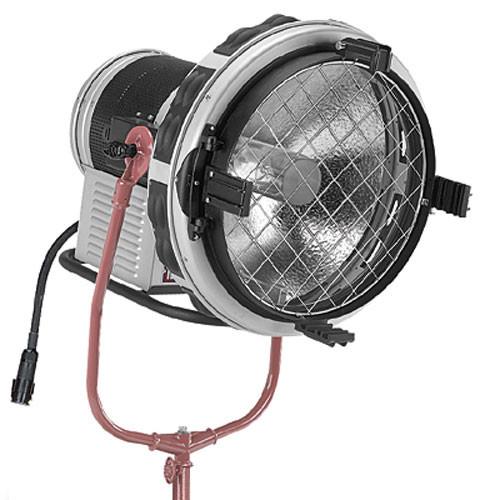

User Manual for Mole-Richardson 12 18K Molepar HMI Fixture Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 12 18K Molepar HMI Fixture
- Product category: HMI & Plasma Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson HMI & Plasma Lights
|
User manual for the Mole-Richardson 12 18K Molepar HMI Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description This Mole Richardson 12,000-18,000-Watt HMI Molepar with a re-engineered trough achieves a more compact design over the previous model. This fixture also includes a redesigned curved yoke, allowing the head to pivot to steeper angles. Use it for lighting large indoor and outdoor sets where daylight illumination is required. This HMI Molepar can be safely used on Condor or Power lifts and is a highly efficient compact source of daylight using a 12,000-watt HMI single ended globe (available separately). Four separate lenses are available, Extra Wide, Wide, Medium and Narrow Beam for varied lighting applications. A safety screen is included. Order the #66065 solid-state, electronic, flicker-free ballast for this fixture. When fitted with a ballast and 12,000-watt HMI Lamp, with no lens attached, this fixture will supply a 4.3' (1.3 m) diameter beam of 27,440 fc from a distance of 25' (7.6 m). At 200' (60.6 m), it will throw a 34.4' (10.4 m) diameter beam of 430 fc. - Sturdy, Lightweight Construction
-
- Solid and perforated aluminum chassis
- Aluminum tube yoke and trunion castings
- Focus Control
-
- Knob on rear of unit allows one f/stop adjustment
- Extra wide, wide, spot, narrow lens assemblies are available separately
- Power Switch
- On-Off, hot-restrike switches on rear of fixture
In the Box Mole-Richardson 12/18K Molepar HMI Fixture Limited 1-Year Warranty Note: HMI Bulb, ballast, and cable not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 12 18K Molepar HMI Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Daylite Par Specs | Rating | 12,000 or 18,000 W
240 VAC, 60 Hz, 75 A | | Socket (Lampholder) | Heavy duty bi-post | | Lens (Condenser) | Optional | | Mounting | Junior 1 1/8" | | Weight | 67 lb / 30.45 kg | | Dimensions | Not Specified by Manufacturer |
