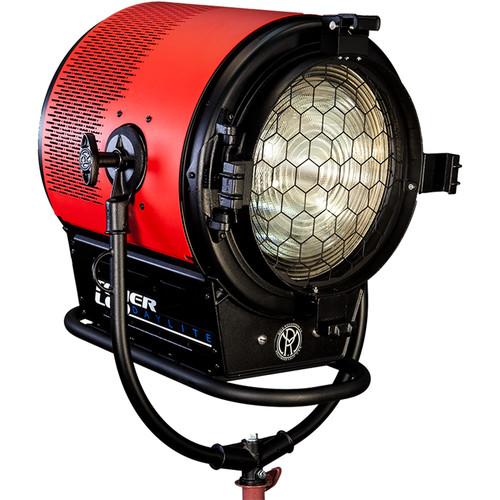

User Manual for Mole-Richardson 1600W Tener LED Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 1600W Tener LED
- Product category: LED Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson LED Lights
|
User manual for the Mole-Richardson 1600W Tener LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description With a daylight-balanced output comparable to a 2500W HMI Baby Solarspot, the Mole Richardson 1600W Tener LED provides you with similar lighting possibilities as a traditional Baby Tener using LED technology. It features a 14" diameter borosilicate glass Fresnel lens, and a hybrid passive/fan-forced-air cooling design to handle any heat from the LEDs. With a CRI rating of 90, the daylight-like output provides a good reproduction of sunlight, and it can be dimmed from 100% brightness down to 0% without flicker and with only minimal color shift.
The fixture allows both local (manual) and remote dimming via DMX 512 protocol. Front and rear focus knobs allow you to vary the spot/flood beam pattern from 10 to 55°. The aluminum and steel chassis is powder coated to add corrosion resistance and the fixture is built to withstand the daily production grind. Included with the fixture is a 25' long head cable that connects the ballast to the head. Additional lengths of cable are available and the light has been tested to function with up to 100' of cable between the fixture and the ballast. - The fixture is similar to other Mole Richardson fixtures with 14" Fresnel lenses, enabling you to use it in the same manner that you would use an incandescent 10,000-watt fixture, without generating the same heat or drawing nearly as much power.
- Local dimming control allows you to adjust the brightness of the fixture from the fixture itself, without introducing flicker at standard frame rates.
- DMX 512 is the remote control protocol that the fixture supports, allowing you to adjust the brightness level of the light from a DMX 512 compatible panel (panel not included).
- The power switch is incorporated into the ballast and not the light fixture itself. The ballast also incorporates a 20-amp breaker.
- Although the fixture does not include barndoors or other accessories, it is capable of using accessories designed for a Mole Richardson 10,000-Watt Baby Tener.
In the Box Mole-Richardson 1600W Tener LED (Daylight) Head Ballast 25' Head Cable True Con Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 1600W Tener LED in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Tener LED Specs | | | Beam Angle | 10 to 55° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 90 | | Cooling System | None | | Display | None | | Fixture Dimensions | 24.0 x 23.0 x 33.0" / 61.8 x 59.0 x 83.6 cm | | Fixture Weight | 70 lb / 31.75 kg | | | | Lens Diameter | 14" / 35.6 cm | | Lens Material | Borosilicate Glass | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 1-1/8" Stud | | Accessory Mount | None | | | | AC Input Power | 90 to 250 VAC, 50 / 60 Hz at 14.5 A | | DC Input Power | 60 VDC at 30 A | | Power Source | AC Adapter | | Max Power Consumption | 1600 W | | Fuse | 15 A / Slow-Blow | | | | Power Supply Output | 60 VDC | | | | Certifications | RoHS, UL, as per Manufacturer | | IP Rating | IP30 | | | | Package Weight | 132.85 lb | | Box Dimensions (LxWxH) | 48.0 x 34.0 x 32.4" |
