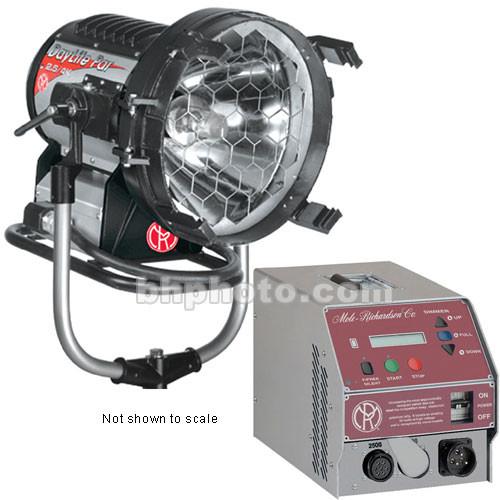

User Manual for Mole-Richardson 2.5-4K HMI Par 1-Light Kit Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 2.5-4K HMI Par 1-Light Kit
- Product category: HMI & Plasma Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson HMI & Plasma Lights
|
User manual for the Mole-Richardson 2.5-4K HMI Par 1-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description This Mole-Richardson 2.5-4K HMI Par 1-Light Kit consists of a 2.5/4K HMI fixture, electronic ballast, and cable. The 2.5/4K DayLite Par is the latest addition to the Mole-Richardson family of lighting products. This fixture features solid, rugged construction that is both lightweight and compact, designed to address the needs of both the user and service technician. It has an easy globe installation and removal, visual and tactile feedback for lamp position, adjustable yoke pivot point, easy access for maintenance and replacement of the igniter, a safety switch, and a new reflector design that provides a very powerful output with either lamp. As with most PAR fixtures, the light output of this fixture may also be adjusted by using different lenses placed in front. For example, when fitted with a 2000W HMI bulb and a medium lens, it will emit a beam of light at 385 footcandles, 25.8' in diameter from a distance of 50'. Without a lens, it can blast a subject with 3816 footcandles, 4.26' in diameter from the same distance. When fitted with a 4000-watt HMI bulb and medium lens, this fixture will emit 525 footcandles, 21.6' in diameter from 50'. Without a lens, 3906 footcandles, 5' wide from 50'. Note: An HMI bulb must be purchased separately. - Includes a multi-voltage, hot-restrike AC Electronic ballast designed for use with the 2.5 or 4K HMI Molepar lights.
- A 4-leaf barndoor set with built-in light spill guard is available separately, and a set of diffusion lenses that can be rotated 360° while mounted in the fixture.
- This fixture can accommodate all standard 13.5 inch diameter accessories.
- Separate igniter housing for cooler operation.
- Rugged construction of cast and sheet aluminum.
- Clear anodized aluminum/black powder coated enamel.
- Operates on 200 VAC, 50-60 Hz, 25.6A, max.
In the Box Mole-Richardson 2.5-4K HMI Par 1-Light Kit (90-260 VAC) 2.4/4K HMI Par Fixture, Yoke, Pin (6641) 2.4/4K HMI Electronic Ballast (638185) 50' Head-to-Ballast Cable for 2.5K HMI Fresnel (63897) Note: HMI bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 2.5-4K HMI Par 1-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Daylite Par Specs | Rating | 2500 or 4000 W | | Socket (Lampholder) | G38 bi-post porcelain with brass inserts | | Lens (Condenser) | Optional | | Mounting | 1 1/8" steel yoke pin | | Weight | Light Fixture: 39 lb / 17.7 kg (with yoke, no bulb)
Ballast: 31 lb / 14 kg | | Dimensions | Light Fixture: 35.85 x 16.2 x 20.26" / 91 x 41 x 51.5 cm (with yoke)
Ballast: 15 x 10.5 x 9.5" / 38.1 x 26.7 x 24.1 cm | | Kit Weight | ~80 lb / 36.3 kg |
