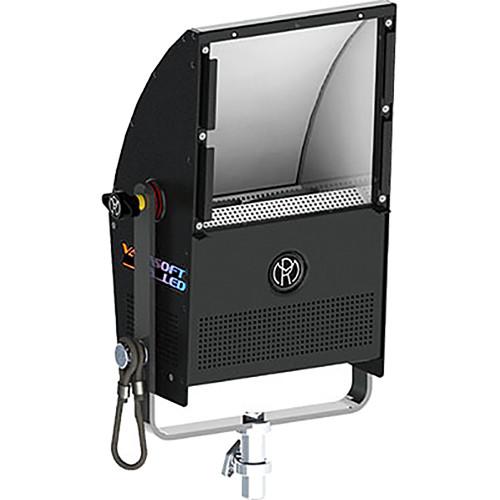

User Manual for Mole-Richardson 200W Vari-SoftLED Variable-Color Softlite Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 200W Vari-SoftLED Variable-Color Softlite
- Product category: LED Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson LED Lights
|
User manual for the Mole-Richardson 200W Vari-SoftLED Variable-Color Softlite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description With an 8 x 8" aperture and a 95% reflective white painted aluminum reflector, the 200W Vari-SoftLED Variable-Color Softlite from Mole-Richardson will produce a shadowless wrap around light with a smooth field with a quality of light similar to that of a 1000W tungsten fixture. This model utilizes two 100W LEDs and has a variable color of 2700-5600K so that you can easily match different lights without needing gels or filters. Also, it has a beam angle of 170° for wide coverage as well as both local and DMX512 dimming from 0-100%.
The fixture is constructed of aluminum and has an IP30 rating for durability as well as a yoke for mounting. Also, it utilizes passive-forced air cooling and runs on a universal 90-250 VAC power supply. - Photometrics
- 2700K: 40 fc (431 lux) at 10' (3 m)
3200K: 42 fc (452 lux) at 10' (3 m)
4300K: 45 fc (484 lux) at 10' (3 m)
5600K: 47 fc (509 lux) at 10' (3 m) In the Box Mole-Richardson 200W Vari-SoftLED Variable-Color Softlite Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 200W Vari-SoftLED Variable-Color Softlite in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Vari-Soft Specs | Light Source | Two Mole-Richardson 100 W LEDs | | Rating | 200W | | Equivalent | 1000W | | Color Temperature | 2700-5600K | | Beam Angle | 170° | | Aperture | 8 x 8" (20.3 x 20.3 cm) | | Reflector | 95% reflective white painted aluminum | | Switch | Thru-cord toggle in cable, DMX or local toggle in trough | | Fuse | 3 A, slow-blow, fuseholder in trough | | Dimming | Flicker-free, direct DC dimming from 0-100% via on-board controls or DMX | | Control | 2 channel (intensity and color mix) DMX 512-A in and out, manual DMX address selector | | Power Port | powerCON input | | Power Requirements | 90-250 VAC, 50-60 Hz, 200 W, 2 A max (DMX standby <0.05 A) | | Mount | Aluminum strap yoke accepts 0.625" (16 mm) diameter mounting hardware | | Cooling | Passive-forced air | | Construction | Aluminum | | Compliance | RoHS, CE, UL, CSA pending | | IP Rating | 30 | | Finish | Textured black power coat epoxy | | Dimensions | 11.8 x 20.6 x 7.7" (299 x 524 x 197 mm) with yoke | | Weight | 12 lb (5.5 kg) | | | | Package Weight | 15.62 lb | | Box Dimensions (LxWxH) | 23.6 x 13.0 x 12.5" |
