User Manual for Mole-Richardson 200W Varimole LED Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 200W Varimole LED
- Product category: LED Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson LED Lights
 |
User manual for the Mole-Richardson 200W Varimole LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|

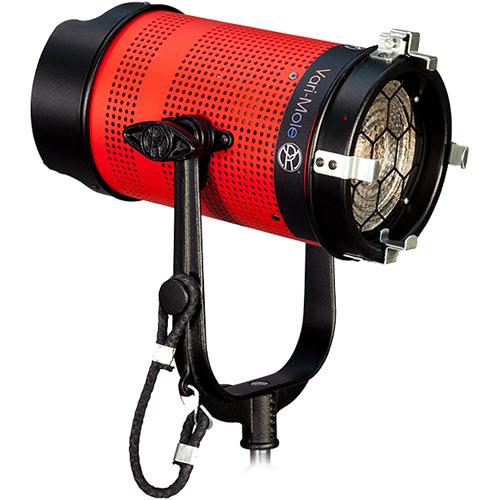

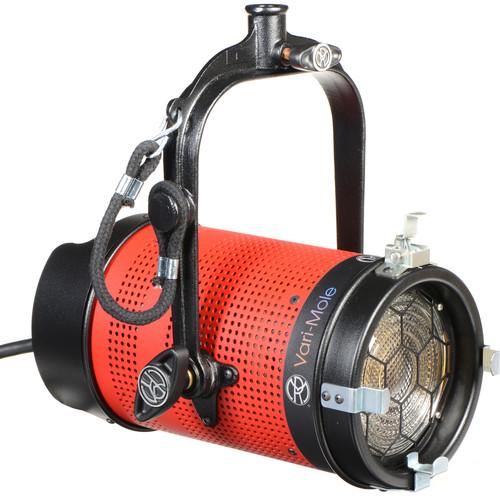

Product description Five LED Fresnel Lights from Mole Richardson Read More With a variable color temperature output comparable to a 650W Tweenie, the Mole Richardson 200W Varimole LED provides you with similar lighting possibilities as a traditional Tweenie using LED technology. It features a borosilicate glass Fresnel lens, and a hybrid passive/fan-forced air cooling design to handle any heat from the LEDs. With a CRI rating of 93 daylight and 95 tungsten the light can be dimmed from 100% brightness down to 0% without flicker and with only minimal color shift.
The fixture allows local (manual) dimming and includes a Fresnel with a 60° beam spread. The aluminum and steel chassis is powder coated to add corrosion resistance and the fixture is built to withstand the daily production grind. Included with the fixture is a 25' long detachable power cable. - The fixture is similar to other Mole Richardson Tweenie-style fixtures, enabling you to use it in the same manner that you would use an incandescent Tweenie, without generating the same heat or drawing nearly as much power.

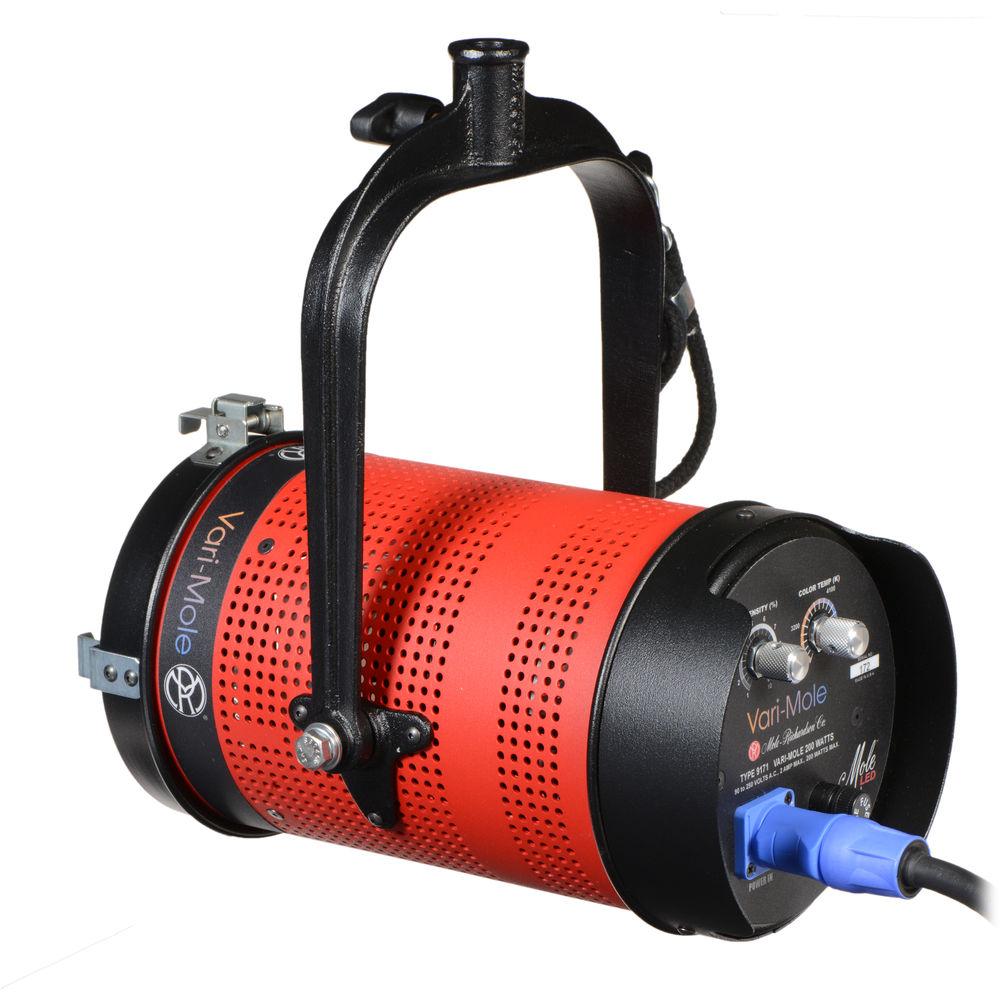

- Local dimming control allows you to adjust the brightness of the fixture from the fixture itself, without introducing flicker at standard frame rates.
- Although the fixture does not include barndoors or other accessories, it is capable of using accessories designed for a Mole Richardson TweenieLED or 650W Tweenie II Solarspot.
In the Box Mole-Richardson 200W Varimole LED Detachable Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 200W Varimole LED in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Vari-Mole Specs | | | Color Temperature | 2700 to 5600K | | Color Accuracy Standard | CRI 93 | | Cooling System | None | | Display | None | | Fixture Dimensions | 11.0 x 28.0 x 13.0" / 29.5 x 22.2 x 32.8 cm | | Fixture Weight | 6 lb / 2.7 kg
8 lb / 3.6 kg (Including Cable) | | | | Lens Material | Borosilicate Glass | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 1-1/8" Stud | | Accessory Mount | None | | | | AC Input Power | 90 to 250 VAC, 50 / 60 Hz at 2 A | | Power Source | AC Adapter | | Max Power Consumption | 100 W | | Fuse | 3 A / Slow-Blow | | | | Cable Length | 20' / 6 m | | Cable Type | Unspecified to NEMA 5-15 | | | | Certifications | RoHS, UL, as per Manufacturer | | IP Rating | IP20 | | | | Package Weight | 13.05 lb | | Box Dimensions (LxWxH) | 18.1 x 12.5 x 12.3" |
