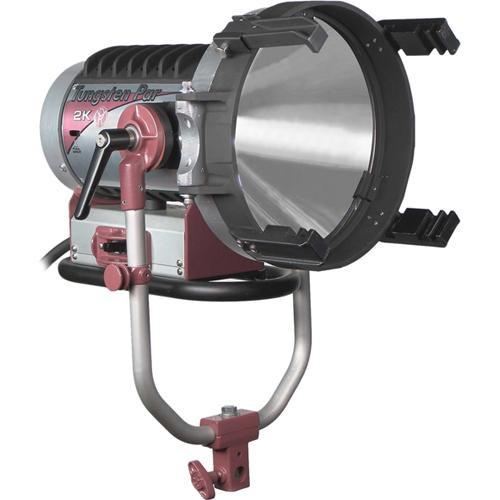

User Manual for Mole-Richardson 2K Tungsten PAR Fixture Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 2K Tungsten PAR Fixture
- Product category: Tungsten Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson Tungsten Lights
|
User manual for the Mole-Richardson 2K Tungsten PAR Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description The Mole Richardson 2K Tungsten PAR is based on the design of the widely popular Daylite HMI PARs. The combination of the high-efficiency parabolic reflector and axial (on its side) orientation of the conventional tungsten lamp yields a fixture with performance of more than twice its nominal wattage. Optional lenses are available to narrow or "flood-out" the luminaries' beam of light, while a knob on the back of the housing offers fine adjustment within the beam parameters of the selected lens. The 120V fixture features a hinged, locking front door for quick lamp change as well as a 5/8" (16 mm) "baby" receiver and stainless steel safety screen. Variable accessory clip positions can be located at either 90° or 45°. Also included are an attached 7-conductor cable with male Veam connector and a 25' 12/3 Edison extension. The head accepts Mole 10 1/8" (25.7 cm) accessories. - Lenses
- Optional interchangeable lenses are available to vary the beam spread from narrow to super-wide.
- Structural Integrity
- Single body casting design for increased cooling, input cable management, one-touch 4th clip and dual purpose skids/handles.
- Accessory Mount
- Adjustable accessory points for either 90° or 45° operation.
In the Box Mole-Richardson 2K Tungsten PAR Fixture Yoke Safety Screen 5/8" / 16 mm Mounting Pin Limited 1-Year Warranty Note: Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 2K Tungsten PAR Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson 2K Tungsten PAR Specs | Rating | 2000 watts maximum, 120 VAC or VDC | | Socket (Lampholder) | G38 bi-post porcelain with brass inserts | | Lens (Condenser) | 5 Optional interchangeable lenses | | Reflector (Mirror) | Parabolic | | Mounting | 1 1/8" / 28 mm steel yoke pin | | Yoke | Round, twin blade | | Cable | Attached 25' Type SO, 3 conductor #12 AWG (no plug) | | Focusing | Spot-to-flood knob | | Weight | 20 lb / 9 kg | | Dimensions | 11 1/4 x 11 1/2 x 23" / 28.5 x 29 x 58.5 cm (with yoke) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 57 owners. Add your rating and experience with the product.
