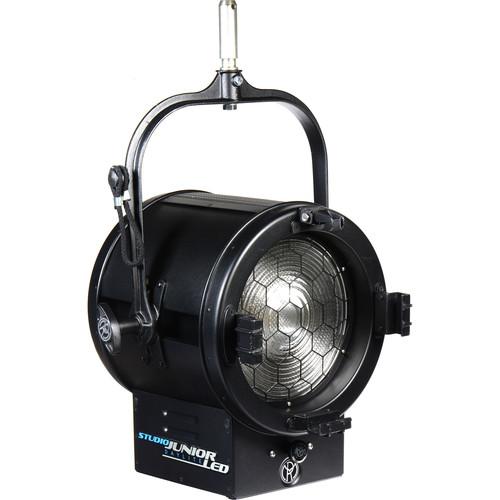

User Manual for Mole-Richardson 400W JuniorLED 10" Daylight Fresnel Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 400W JuniorLED 10" Daylight Fresnel
- Product category: LED Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson LED Lights
|
User manual for the Mole-Richardson 400W JuniorLED 10" Daylight Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description This 90-250 VAC daylight-balanced 400W JuniorLED 10" Daylight Fresnel from Mole-Richardson features passive cooling, aluminum alloy and steel construction, a 10 to 55 degree spot to flood variation and a yoke with a 1 1/8" pin for standard Junior stands and accessories. Local dimming means you'll probably be restricting your scrimming to half-scrims, saving you a lot of ladder climbing. The Studio JuniorLED has a low maximum draw as compared to a legacy fixture effecting up to an 80% reduction in energy consumption. This means that you can run double the amount of LEDs as traditional lights without raising the temperature. Cooler operation also means less air-conditioning running costs in the studio as well as near-maintenance-free performance without downtime for re-lamping.Apart from the black powder-coated finish, the Studio JuniorLED head looks and performs the same as a legacy light, allowing you to swap a standard light for a Studio JuniorLED or mix them. In fact, there's a retro-fit kit available to convert your old style light to an LED. The Studio JuniorLED is supplied with a 25' cable and a NEMA 5-15 Edison (US) plug. - Benefits
-
- An 80% reduction in energy consumption
- Flicker-free dimming with little to no color shift
- No need for external dimming systems
- No direct IR or radiant heat from Fresnel
- MoleLED Technology
- MoleLED Fresnels are powered by a proprietary, patent-pending Mole-Richardson Quantum Dot chip on-board LED module. The benefit of QD LED technology is the ability to specifically tune the visible wavelength at the nano scale which, in this case, allows for precise adjustment of the red spectrum without impacting the overall light output of the LED.
- Retro-Fit Kits
- Realizing a need for the industry to further reduce, reuse and recycle, Mole is also offering simple retro-fit kits to convert existing legacy Tweenie, Baby, and 8" Junior Solarspots to new Tungsten or Daylight MoleLED Fresnels.
- Photometrics
- Maximum Flood
1300 fc/13,993 lux at 5.0' (1.5 m)
397 fc/4273 lux at 10' (3.0 m) with 9.0' (2.7 m) beam diameter
155 fc/1668 lux at 15' (4.6 m)
Maximum Spot
3100 fc/33,368 lux at 5.0' (1.5 m)
990 fc/10,656 lux at 10' (3.0 m) with 3.0' (0.9 m) beam diameter
450 fc/4843 lux at 15' (4.6 m) In the Box Mole-Richardson 400W JuniorLED 10" Daylight Fresnel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 400W JuniorLED 10" Daylight Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Studio JuniorLED Specs | | | Beam Angle | 10 to 55° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 90 | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Housing Material | Aluminum, Steel | | Fixture Dimensions | 21.5 x 17.0 x 17.0" / 54.6 x 43.2 x 43.2 cm | | Fixture Weight | 27.5 lb / 12.25 kg (Including Cable) | | | | Lens Diameter | 10" / 25.4 cm | | Lens Material | Borosilicate Glass | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 1-1/8" Stud | | Accessory Mount | None | | | | AC Input Power | 90 to 250 VAC, 50 / 60 Hz at 4 A | | Power Source | AC Adapter | | Max Power Consumption | 400 W | | Fuse | 2.0 A / Slow-Blow | | | | Cable Length | 25' / 7.6 m | | Cable Type | Attached to NEMA 5-15 | | | | Certifications | RoHS, UL, as per Manufacturer | | IP Rating | IP30 | | | | Package Weight | 32.75 lb | | Box Dimensions (LxWxH) | 22.0 x 21.4 x 17.4" |
