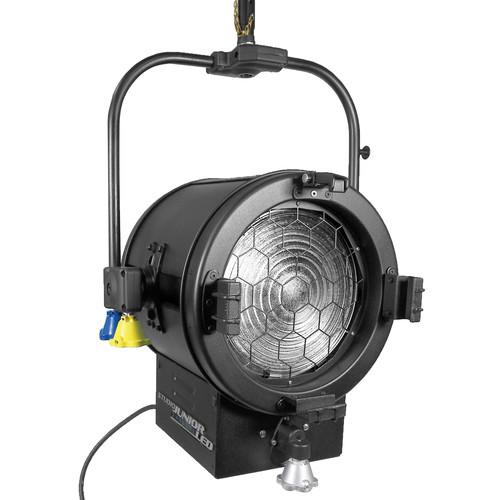

Product description This pole-operated 90-250 VAC tungsten-balanced 400W JuniorLED 10" Tungsten Fresnel from Mole-Richardson features passive cooling, aluminum alloy and steel construction, a 10 to 55 degree spot to flood variation and a yoke with a 1 1/8" pin for standard Junior stands and accessories. On-board dimming means you'll probably be restricting your scrimming to half-scrims, saving you a lot of ladder climbing. The Studio JuniorLED has a low maximum draw as compared to a legacy fixture effecting up to an 80% reduction in energy consumption. This means that you can run double the amount of LEDs as traditional lights without raising the temperature. Cooler operation also means less air-conditioning running costs in the studio as well as near-maintenance-free performance without downtime for re-lamping.Apart from the black powder-coated finish, the Studio JuniorLED head looks and performs the same as a legacy light, allowing you to swap a standard light for a Studio JuniorLED or mix them. In fact, there's a retro-fit kit available to convert your old style light to an LED. The Studio JuniorLED is supplied with a Attached 25' (7.6 m) Type SO., 3 Conductor, #18 AWG with NEMA 5-15 Edison plug, thru-cord toggle in cable. - Benefits
-
- An 80% reduction in energy consumption
- Flicker-free dimming with little to no color shift
- No need for external dimming systems
- No direct IR or radiant heat from Fresnel
- MoleLED Technology
- MoleLED Fresnels are powered by a proprietary, patent-pending Mole-Richardson Quantum Dot chip on-board LED module. The benefit of QD LED technology is the ability to specifically tune the visible wavelength at the nano scale which, in this case, allows for precise adjustment of the red spectrum without impacting the overall light output of the LED.
- Retro-Fit Kits
- Realizing a need for the industry to further reduce, reuse and recycle, Mole is also offering simple retro-fit kits to convert existing legacy Tweenie, Baby and 8" Junior Solarspots to new Tungsten or Daylight MoleLED Fresnels.
- Photometrics
- Maximum Flood
1200 fc/12,916 lux at 5.0' (1.5 m)
380 fc/4090 lux at 10' (3.0 m) with 9.0' (2.7 m) beam diameter
145 fc/1560 lux at 15' (4.6 m)
Maximum Spot
3000 fc/32,291 lux at 5.0' (1.5 m)
900 fc/9687 lux at 10' (3.0 m) with 3.0' (0.9 m) beam diameter
420 fc/4520 lux at 15' (4.6 m) In the Box Mole-Richardson 400W JuniorLED 10" Tungsten Fresnel (Pole-Operated) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 400W JuniorLED 10" Tungsten Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Studio JuniorLED Specs | | | Beam Angle | 10 to 55° | | Color Temperature | 3200K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Dimming | Yes, 10 to 100% (Stepped) | | Display | None | | Housing Material | Aluminum, Steel | | Fixture Dimensions | 21.5 x 17.0 x 17.0" / 54.6 x 43.2 x 43.2 cm | | Fixture Weight | 24 lb / 11 kg (Including Cable) | | | | Lens Diameter | 10" / 25.4 cm | | Lens Material | Borosilicate Glass | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 1-1/8" Stud | | Accessory Mount | None | | | | Yoke Material | Aluminum | | Yoke Type | Pole Operated | | | | AC Input Power | 90 to 250 VAC, 50 / 60 Hz at 4 A | | Power Source | AC Adapter | | Max Power Consumption | 400 W | | Fuse | 2.0 A / Slow-Blow | | | | Cable Length | 25' / 7.6 m | | Inline Switch | Yes | | Cable Type | Attached to NEMA 5-15 | | | | Certifications | RoHS, UL, as per Manufacturer | | IP Rating | IP30 |
