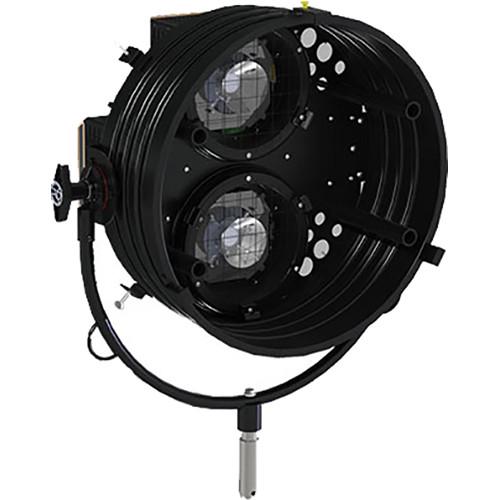

User Manual for Mole-Richardson 400W LED Spacelite 2 Tungsten with Yoke Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 400W LED Spacelite 2 Tungsten
- Product category: LED Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson LED Lights
|
User manual for the Mole-Richardson 400W LED Spacelite 2 Tungsten contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description Add some versatility to your space lighting with this yoke version of the 400W LED Spacelite 2 Tungsten from Mole-Richardson. It features two 3200K 225W Quantum Dot LEDs that offer the same color rendition and optics as their 2K incandescent counterparts. It has a polished aluminum 60° reflector that helps control where the light falls. The fixture also has 1 channel DMX512 input and output with manual address selection for flicker-free dimming from 0-100%. An on-board dimmer is available for direct dimming capabilities.
The light is constructed from a rugged, sheet aluminum for durability and has a passive-forced air cooling system. It has an IP30 rating with a textured black powder coat epoxy finish for protection. Additionally, it has a universal 90-250 VAC power supply for worldwide usage with powerCON input and output with pass-through capabilities. - Photometrics
- At 10' (3.1 m): 200 fc (2153 lux) with 7.3' (2.2 m) beam diameter
At 12' (3.7 m): 140 fc (1507 lux) with 8.7' (2.7 m) beam diameter
At 15' (4.6 m): 95 fc (1023 lux) with 10.9' (3.3 m) beam diameter
At 20' (6.1 m): 50 fc (538 lux) with 14.6' (4.4 m) beam diameter In the Box Mole-Richardson 400W LED Spacelite 2 Tungsten with Yoke Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 400W LED Spacelite 2 Tungsten with Yoke in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Spacelite 2 Specs | | | Beam Angle | 60° | | Color Temperature | 3200K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Fixture Dimensions | 12.4 x 23.9 x 27.9" / 314.0 x 607.0 x 708.0 mm (Including Yoke) | | Fixture Weight | 18 lb / 8.2 kg | | | | Power Input Connector | powerCON | | DMX Connector | 5-Pin XLR | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 1-1/8" Stud | | Accessory Mount | None | | | | Remote Control Type | DMX | | Number of DMX Channel Modes | 1 | | | | AC Input Power | 90 to 250 VAC, 50 / 60 Hz at 4 A | | Power Source | AC Adapter | | DMX Standby Current | <0.25 A | | Max Power Consumption | 400 W | | Fuse | 10 A / Slow-Blow | | Power Pass-Thru | Yes | | | | Certifications | RoHS, UL, as per Manufacturer | | IP Rating | IP30 | | | | Package Weight | 34.3 lb | | Box Dimensions (LxWxH) | 24.2 x 24.2 x 20.8" |
