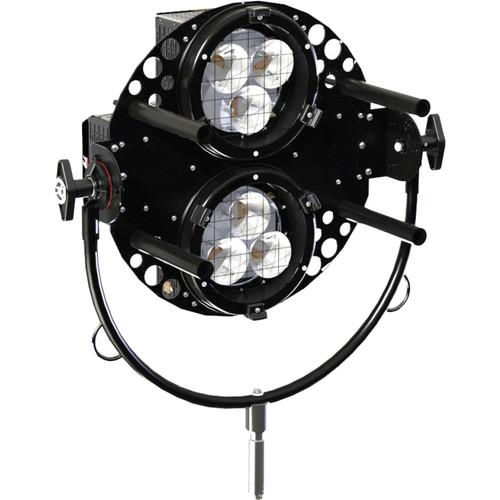

User Manual for Mole-Richardson 400W LED Vari-Skypan with Yoke Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 400W LED Vari-Skypan with Yoke
- Product category: LED Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson LED Lights
|
User manual for the Mole-Richardson 400W LED Vari-Skypan with Yoke contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description Designed to create ambient illumination, the 400W Vari-Skypan LED with Yoke from Mole Richardson features a 60-degree reflector and uses silks and skirts to light hallways, cyc-walls and tight spaces. Six color mixing LEDs are color-variable from 2700 to 5600K and dimmable from 0-100% either locally or via DMX or for maximum flexibility. The tungsten LEDs have a CRI of 97 and the daylight 95 for accurate color rendering down to the subtlest hues. The Vari-Skypan is fabricated from rugged aluminum sheet metal with a textured black, powder coat epoxy finish. This version has a yoke for stand mounting. In the Box Mole-Richardson 400W LED Vari-Skypan with Yoke Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 400W LED Vari-Skypan with Yoke in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Vari-Skypan Specs | Rating | 90 to 250 VAC, 50/60 Hz, 400 W, 4 A maximum
DMX standby draw < 0.25 A | | Light Source | 6 x 75 W Mole-Richardson color mixing LEDs
3200K 97 CRI Tungsten and 5600K 95 CRI daylight | | Switch | 20 A thru cord toggle in cable, DMX or local toggle in trough | | Fuse | 10 A, slow-blow, fuse holder in top cover | | Dimming | Flicker-Free, direct DC dimming
On-board dimmer 100 to 0% (minimal color shift)
True, linear DMX 100 to 0% (minimal color shift) | | Photometrics | At 2700K (no diffusion)
300 fc/3,225 lux @ 7.3' (2.2 m) with a beam diameter of 7.3' (2.2 m)
75 fc/806 lux @ 20' (6.1 m) with a beam diameter of 14.6' (4.4 m)
At 5600K (no diffusion)
360 fc/3,870 lux @ 7.3' (2.2 m) with a field diameter of 15.6' (4.8 m)
105 fc/1,129 lux @ 20' (6.1 m) with a field diameter of 31.3' (9.5 m) | | Control | 2-Channel DMX 512-A In and Out
Manual DMX address selector | | Reflector | Polished aluminum, 60° | | Mount | Yoke | | Cooling | Passive-forced air | | Construction | Rugged, sheet aluminum | | Finish | Textured black powder coat epoxy | | Compliance | RoHS, CE, UL, CSA pending | | IP Rating | IP30 | | Dimensions | Depth: 12.4" (315 mm)
Diameter: 18" (457.2 mm) | | Weight | 18 lb (8.2 kg) |
