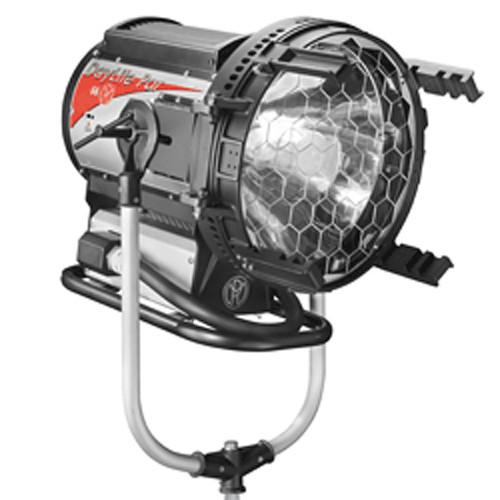

User Manual for Mole-Richardson 6000-Watt HMI PAR Electronic Ballast Kit Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 6000-Watt HMI PAR Electronic Ballast
- Product category: HMI & Plasma Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson HMI & Plasma Lights
|
User manual for the Mole-Richardson 6000-Watt HMI PAR Electronic Ballast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description This is a Mole-Richardson Daylight Par 6K HMI Electronic Ballast Kit. The kit features the redesigned 6K PAR which is capable of using either 4K or 6K lamps (purchased separately). The aluminum housing with 95% reflectance parabolic reflector, has on off push-buttons while the hinged lamp access door incorporates an auto shutoff circuit which engages when the door is opened. The head accepts 15.5" accessories including 4 optional lenses to narrow or flood-out the light beam.The included 66569 Electronic Ballast is rated for 4000W/6000 watts and is constructed of anodized sheet aluminum. A fold-away handle is incorporated into the design. Its detachable cord features a VEAM connector.Completing the kit is a 50' head extension cable. Head - Brytal aluminum parabolic reflector provides over 95% reflectivity.
- ON and OFF push-button switches mounted on rear of fixture. May be re-ignited when hot.
- Double pole circuit breaker.
- Interlock micro-switch at door shuts off power to globe sockets when door is opened. Globe cannot be turned on until door is closed.
- Steel tube yoke with aluminum trunion castings and 1 1/8" steel yoke pin.
- Four accessory lenses, used individually, change the beam pattern from Narrow to Extra Wide to Flood. The beam pattern created by the lenses may be rotated within the diffuser clips for vertical or horizontal beam orientation. Further spot to flood adjustments can be made using the focus knob on the rear of the fixture.
Ballast - Anodized aluminum construction, folding handle.
- Detachable power cord with VEAM connector.
In the Box Mole-Richardson 6000-Watt HMI PAR Electronic Ballast Kit (120 VAC) 6000 Watt HMI PAR xuzreufsebtrtswtxzzrwxyfseufwaesxcbwtd 4,000/6,000W Electronic AC Dimming Ballast by Power Gems (195-260 VAC) Head-to-Ballast Cable Limited 1-Year Warranty Note: HMI bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 6000-Watt HMI PAR Electronic Ballast Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Daylite Par Specs | | | Rating | 6000 W
120 VAC, 50-60 Hz with electronic ballast
65 A max | | Socket (Lampholder) | Type G38, heavy duty porcelain with brass bi-post inserts | | Lens (Condenser) | Four lenses optional | | Mounting | Junior 1 1/8" / 28 mm | | Front Accessory Size | 15.5" / 39.3 cm | | Weight | 63 lb / 17.7 kg (without detachable cable) | | Dimensions | 29 x 19.5 x 21" / 73.6 x 49.5 x 53.3 cm | | | | Lamp Power | 4000/6000 W | | Input Voltage | 195-260 VAC, 50/60 Hz, 65 A max | | Dimensions | 22 x 20.5 x 27" / 56 x 52 x 68.5 cm | | Weight | 95 lb / 43 kg |
