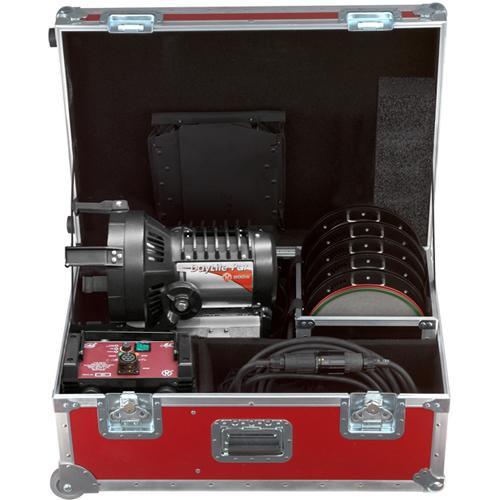

User Manual for Mole-Richardson 800 Watt HMI DayLite Par Kit w Case Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 800 Watt HMI DayLite Par
- Product category: HMI & Plasma Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson HMI & Plasma Lights
|
User manual for the Mole-Richardson 800 Watt HMI DayLite Par contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description This is a Mole Richardson 800 Watt HMI DayLite Par Kit w/ Case with dimmable electronic ballast, 25' cable, barn doors, 4 lens set and scrims. A hard case is also included. The DayLite PAR is designed for cinema, TV and other media events where high output and daylight color balance are required to meet the challenge of ambient conditions. Fabricated from solid cast aluminum, it benefits from improved ventilation and features a Brytal Aluminum parabolic reflector which boasts 95% reflectivity. The fixture has been fitted with a swing out door for quick access to safety and igniter switches. Lamping is achieved via a hinged, locking front door which is fitted with a stainless safety screen that sits over the reflector. Tactile and visual focal indicators denote lamp position which can be tweaked when using the supplied lenses to optimize beam pattern.When fitted with an 800 watt HMI bulb and no lens, this fixture will throw a beam of light of 6010 foot-candles 1.0' in diameter from a distance of 20'. Mounting one of the four included lenses will alter the beam spread, and diminish the light output. Fixture - Complete Kit
- Includes HMI Par Lamp Head, dimmable electronic ballast, 25' cable, barn doors, 4 lens set and scrims. A hard case is also included.
- Structural Integrity
- Fabricated from solid cast aluminum, it benefits from improved ventilation and features a Brytal Aluminum parabolic reflector which boasts 95% reflectivity. The fixture has been fitted with a swing out door for quick access to safety and igniter switches.
- Lamping is achieved via a hinged, locking front door which is fitted with a stainless safety screen that sits over the reflector. Tactile and visual focal indicators denote lamp position which can be tweaked when using the supplied lenses to optimize beam pattern.
- When fitted with an 800 watt HMI bulb and no lens, this fixture will throw a beam of light of 6010 foot-candles 1.0' in diameter from a distance of 20'. Mounting one of the four included lenses will alter the beam spread, and diminish the light output.
Ballast - Dimmable to 50% of full power.
- Multi-Voltage - 90-260VAC, auto-sensing.
-
Microprocessor control, constant power output.
Hot restart.
Circuit breaker. Accessories - Four lenses - Narrow, Medium, Wide, Extra Wide, each helps to shape the light spread.
Barn door set shapes the light. - Scrims diminish the intensity of the light.
- 25' Head-to-ballast cable.
Note:Lamp not Included In the Box Mole-Richardson 800 Watt HMI DayLite Par Kit w/ Case MOHP800 Moletronic Ballast Type (120-240V) 68220 25' Extension Cable 4-Way Barn Door Narrow Lens Assembly Medium Lens Assembly Wide Lens Assembly Extra Wide Lens Assembly Single Scrim 2 x Double Scrims Moleded Hard Case 1-Year Manufacturer's Warranty Note: Lamp Purchased Separately. Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 800 Watt HMI DayLite Par Kit w Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Daylite Par Specs | | | Rating | 800 Watts max | | Socket (Lampholder) | G22, Heavy duty electrical grade porcelain body with friction type bi-post brass inserts. | | Lens (Condenser) | 4 accessory lenses included | | Mounting | 5/8" (16 mm) standard stud | | Weight | 13 lbs (5.9 kg) with cable | | Dimensions | 10.75 x 10.75 x 14.5" (27.3 x 27.3 x 36.8 cm) w/o yoke
10.75 x 10.75 x 19.25" (27.3 x 27.3 x 49 cm) w/ yoke | | | | Rating | 800 Watts, 90-260VAC | | Cable | 25', included | | Weight | 13 lbs (5.9 kg) | | Dimensions | 5 x 9 x 8.5" (12.7 x 23 x 21.6) | | Kit Dimensions | 28.5 x 18 x 13 (72.4 x 45.7 x 33 cm) | | Kit Weight | 65 lbs (29.5 kg) |
