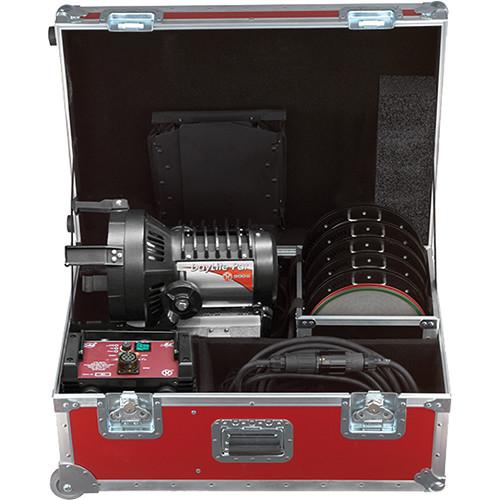

User Manual for Mole-Richardson 800W DayLite Par Pro Kit Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 800W DayLite Par Pro Kit
- Product category: HMI & Plasma Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson HMI & Plasma Lights
|
User manual for the Mole-Richardson 800W DayLite Par Pro Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description Adding upon the standard kit, the 800W DayLite Par Pro Kit from Mole-Richardson includes the 800W DayLite Par light with accessories as well as a Chimera Light Bank, a Chimera Speed Ring, and a Gaffer Pack. The original kit includes the lamp head, ballast, 25' extension cable, 4-way barndoors, narrow, medium, wide, and extra wide lens assemblies as well as a single scrim and two double scrims. A Moleded case is also included that allows you to pack away all of these items for transport and storage. The Chimera Light Bank and Speed Ring offer a way to diffuse and soften the light output from the 800W head and the Gaffer Pack includes a spare lamp, an electrical cube-tap, gloves, clothespins, a gel pack, and ditty bag. - 800 Watt HMI DayLite Par Kit w/ Case This is a Mole Richardson 800 Watt HMI DayLite Par Kit w/ Case with dimmable electronic ballast, 25' cable, barn doors, 4 lens set and scrims. A hard case is also included. The DayLite PAR is designed for cinema, TV and other media events where high output and daylight color balance are required to meet the challenge of ambient conditions. Fabricated from solid cast aluminum, it benefits from improved ventilation and features a Brytal Aluminum parabolic reflector which boasts 95% reflectivity. The fixture has been fitted with a swing out door for quick access to safety and igniter switches. Lamping is achieved via a hinged, locking front door which is fitted with a stainless safety screen that sits over the reflector. Tactile and visual focal indicators denote lamp position which can be tweaked when using the supplied lenses to optimize beam pattern.When fitted with an 800 watt HMI bulb and no lens, this fixture will throw a beam of light of 6010 foot-candles 1.0' in diameter from a distance of 20'. Mounting one of the four included lenses will alter the beam spread, and diminish the light output.
Fixture - Complete Kit
- Includes HMI Par Lamp Head, dimmable electronic ballast, 25' cable, barn doors, 4 lens set and scrims. A hard case is also included.
- Structural Integrity
- Fabricated from solid cast aluminum, it benefits from improved ventilation and features a Brytal Aluminum parabolic reflector which boasts 95% reflectivity. The fixture has been fitted with a swing out door for quick access to safety and igniter switches.
- Lamping is achieved via a hinged, locking front door which is fitted with a stainless safety screen that sits over the reflector. Tactile and visual focal indicators denote lamp position which can be tweaked when using the supplied lenses to optimize beam pattern.
- When fitted with an 800 watt HMI bulb and no lens, this fixture will throw a beam of light of 6010 foot-candles 1.0' in diameter from a distance of 20'. Mounting one of the four included lenses will alter the beam spread, and diminish the light output.
Ballast - Dimmable to 50% of full power.
- Multi-Voltage - 90-260VAC, auto-sensing.
-
Microprocessor control, constant power output.
Hot restart.
Circuit breaker. Accessories - Four lenses - Narrow, Medium, Wide, Extra Wide, each helps to shape the light spread.
Barn door set shapes the light. - Scrims diminish the intensity of the light.
- 25' Head-to-ballast cable.
Note:Lamp not Included - Video Pro Plus 1 Softbox (Small) The small Video Pro Plus 1 Softbox by Chimera is designed for use with a hot light but may be used with flash as well. With fabric intended for the heat of a continuous light, the Small Video Pro Plus 1 with silver interior is ideal for work in small spaces when medium softening of the light is desired. The 24 x 32 inch size is very portable, lightweight, and can be taken on location easily. The "Plus 1" designation of this softbox means the front face of the softbox is removable. Chimera makes different strengths of diffusion material for front face applications. This softbox comes with 1 "Full" diffuser. Optional 1/2 and 1/4 grid cloths allow for more light transmission and also, less softening of the light.
- The Small size is in the middle of the extensive lineup of Chimera softboxes.
- Recessed front face helps control light spill and facilitates the attachment of an optional fabric grid.
- May be used with hot lights up to 1000 watts.
May be used with strobes of any w/s rating. - Required speed (mounting) rings are available separately for many manufacturers' strobes.
UPC: 845077081244 - Gaffer Pack The Mole-Richardson Gaffer Pack is included in all Mole-Richardson ProKits and optional for other kits. Each gaffer pack includes: GE lamps customized for the particular kit, Mole-Richardson leather gloves with mitt clip, an electrical cube-tap, a "gel pack" of Lee Filters, and clothespins, all in a ditty bag. This Gaffer Pack is for the 800W DayLite PAR fixture.
In the Box Bundle Items 800 Watt HMI DayLite Par Kit w/ Case - Moletronic Ballast Type (120-240V) 68220
- 1-Year Manufacturer's Warranty
Video Pro Plus 1 Softbox (Small) acxswqstvyttvtaesrderzducwuxwqurbzq - Black Storage Bag for Softbox, Difusion Screen and Poles
- Full Front Diffusion Cloth with Touch Fastener for Attachment
Gaffer Pack
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 800W DayLite Par Pro Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 800 Watt HMI DayLite Par Kit w/ Case
| | | Rating | 800 Watts max | | Socket (Lampholder) | G22, Heavy duty electrical grade porcelain body with friction type bi-post brass inserts. | | Lens (Condenser) | 4 accessory lenses included | | Mounting | 5/8" (16 mm) standard stud | | Weight | 13 lbs (5.9 kg) with cable | | Dimensions | 10.75 x 10.75 x 14.5" (27.3 x 27.3 x 36.8 cm) w/o yoke
10.75 x 10.75 x 19.25" (27.3 x 27.3 x 49 cm) w/ yoke | | | | Rating | 800 Watts, 90-260VAC | | Cable | 25', included | | Weight | 13 lbs (5.9 kg) | | Dimensions | 5 x 9 x 8.5" (12.7 x 23 x 21.6) | | Kit Dimensions | 28.5 x 18 x 13 (72.4 x 45.7 x 33 cm) | | Kit Weight | 65 lbs (29.5 kg) | - Video Pro Plus 1 Softbox (Small)
| Size | 24 x 32" (61 x 81 cm) | | Shape | Rectangle | | Compatibility | Hot lights up to 1000 Watts, all strobes | | Removable Face | Yes | | Removable Baffle | Yes | | Accepts Grids | Yes | | Requires Speed Ring | | | | | Box Dimensions (LxWxH) | 28.425 x 4.409 x 4.331" |
