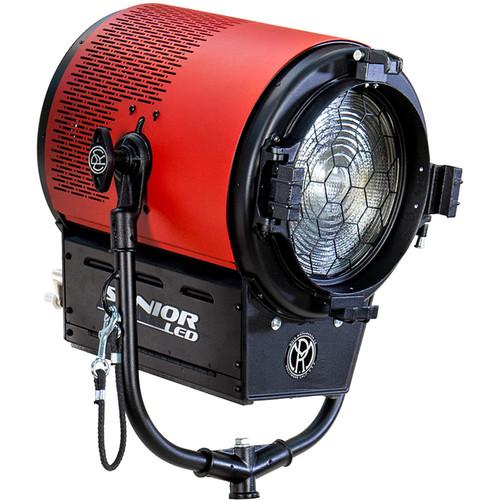

User Manual for Mole-Richardson 900W SeniorLED Tungsten Fresnel Click to enlarge the picture
Contents of the user manual for the Mole-Richardson 900W SeniorLED Tungsten Fresnel
- Product category: LED Lights Mole-Richardson
- Brand: Mole-Richardson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Mole-Richardson LED Lights
|
User manual for the Mole-Richardson 900W SeniorLED Tungsten Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Mole-Richardson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Mole-Richardson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Mole-Richardson product will considerably shorten its lifespan!
|
Product description Replace your 5000W tungsten fixtures with the powerful, yet efficient 900W SeniorLED Tungsten Fresnel from Mole-Richardson. Using one 900W LED with a color temperature of 3100K and CRI of 95, this focusable fixture can throw a lot of light onto your scene. Also, it uses a 10" borosilicate glass fresnel lens for adjusting the beam angle for a 10° spot to a 55° flood. The unit can be dimmed from 0-100% either locally or via the DMX512 input. A DMX512 output is available for linking units and it runs on a universal 90-250 VAC power supply for worldwide use. Additionally, it has an aluminum and steel construction with an IP30 rating. - Photometrics
- Flood: 800 fc (8611 lux) at 10' (3m)
Spot: 1600 fc (17222 lux) at 10' (3m) In the Box Mole-Richardson 900W SeniorLED Tungsten Fresnel Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 900W SeniorLED Tungsten Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson SeniorLED Specs | | | Beam Angle | 10 to 55° | | Color Temperature | 3100K | | Color Accuracy Standard | CRI 95 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum, Steel | | Fixture Dimensions | 21.0 x 17.0 x 26.0" / 533.0 x 432.0 x 660.0 mm (Including Yoke) | | Fixture Weight | 41 lb / 18.6 kg | | | | Power Input Connector | powerCON | | DMX Connector | 5-Pin XLR | | | | Lens Diameter | 10" / 25.4 cm | | Lens Material | Borosilicate Glass | | Lens Type | Fresnel | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 1-1/8" Stud | | Accessory Mount | None | | | | AC Input Power | 90 to 250 VAC, 50 / 60 Hz at 8 A | | Power Source | AC Adapter | | DMX Standby Current | <0.2 A | | Max Power Consumption | 900 W | | Fuse | 15 A / Slow-Blow | | | | Certifications | RoHS, UL, as per Manufacturer | | IP Rating | IP30 | | | | Package Weight | 59.5 lb | | Box Dimensions (LxWxH) | 29.2 x 25.8 x 23.6" |
