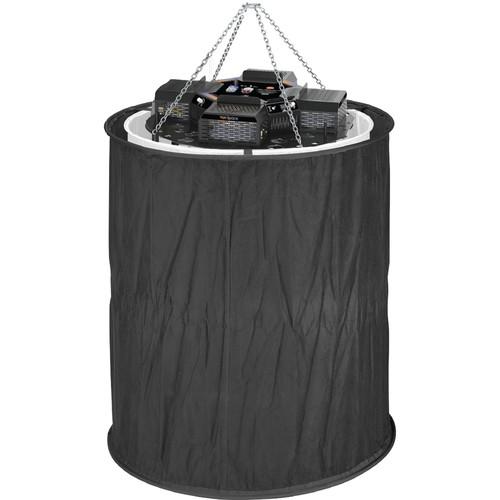

Product description The Mole Richardson 900W Vari-Space LED features twelve 75W proprietary color-mixing LEDs with an output color temperature range of 2700 to 5600K and a CRI rating from 97 to 95. It provides approximately the same maximum output as a 6000W tungsten fixture, but it only draws a maximum of 900W. The fixture's output can be dimmed from 100% brightness to 0% without flicker at normal frame rates. It is equipped with a 60° polished aluminum reflector matching the output beam of tungsten units. The Vari-Space LED is designed to hang from a grid and be used as a Spacelight (skirts are not included). However, an optional yoke can be fitted to allow the fixture to be used as a Skypan.
It is DMX-controllable, taking up two channels, one for color temperature and channel two for intensity, or you can control the unit locally with two built-in manual potentiometers one for color temp and one for intensity. Power is supplied via an included detachable 20' long PowerCON cable. Built into the top cover of the fixture are loop through PowerCON connectors and a 10A slow-blow fuse. Cooling is accomplished with a passive-forced air system. - Equivalent to 6K tungsten fixture, yet draws 900W max
- 100 to 0% dimming and variable color temperature from 2700 to 5600K
- CRI rating of 97 with 2700K output and CRI rating of 95 with 5600K output
In the Box Mole-Richardson 900W Vari-Space LED 20' PowerCON Cable Chain Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Mole-Richardson 900W Vari-Space LED in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMole-Richardson Vari-Space LED Specs | Rating | 90 to 250 VAC, 50 to 60 Hz; 900 W, 8 A maximum
DMX standby draw < 0.5 A | | Light Source | 12 x 75 W Mole-Richardson color mixing LEDs
2700K 97 CRI & 5600K 95 CRI | | Fuse | 10 A | | Dimming | On-board dimmer 100 to 0% (minimal color shift)
True, linear DMX 100 to 0% (minimal color shift) | | Control | 2-Channel DMX 512-A In and Out
Manual DMX address selector | | Cooling | Passive-forced air | | Construction | Rugged, aluminum sheet | | Compliance | RoHS, CE, UL, CSA pending | | IP Rating | IP30 | | Reflector | Polished aluminum, 60° | | Dimensions (D x W x H) | 22.82 x 28.62 x 12.2" / 57.97 x 72.7 x 30.99 cm (with chain) | | Weight | 32 lb / 14.5 kg | | | | Package Weight | 51.0 lb | | Box Dimensions (LxWxH) | 30.5 x 30.5 x 20.8" |
